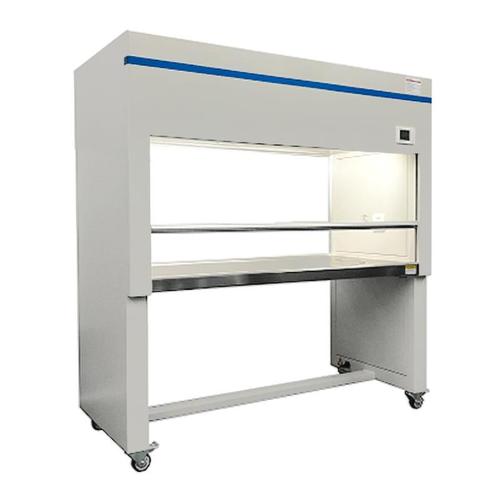

Vertical Laminar Air Flow
Vertical Laminar Air Flow (LAF)
Vertical laminar air flow provides a local clean working area by blowing uniform purified air in vertical direction from the HEPA filter installed on the top, which can avoid air vortex effectively. On the front of working chamber, it is fitted with sash window, which can protect the health of working staffs. The vertical laminar air flow is widely used in industries like bio-pharmaceuticals, microbiology(non-pathogenic), sterile product compounding, forensics, etc.
As an experienced laminar air flow manufacturer in China, we can customize based on special requirements. Please send us your specifications to tailor vertical LAF solutions.
Vertical Laminar Air Flow Specifications
| Model | VLAF-1000 | VLAF-1350 | VLAF-1640 | VLAF-1950 |
| External Size(W*D*H) mm | 1000*650*1750 | 1350*650*1750 | 1640*650*1750 | 1950*650*1750 |
| Internal Size(W*D*H) mm | 820*610*600 | 1270*610*600 | 1560*610*600 | 1870*610*600 |
| Air Volume(m³/h) | 900 | 1100 | 1500 | 1800 |
| Air Speed | 0.45m/s ± 20% | |||
| Cleanliness Level | Class 100(In accordance with ISO14644) | |||
| HEPA Filter Efficiency | ≥99.99%(@≥0.3μm) | |||
| HEPA Filter Qty. | 1 | 1 | 2 | 2 |
| Worktop Material | 304 Stainless Steel | |||
| Noise | < 50dB | |||
| Customized design for size, material, and other specifications is available, click the button below for asking a tailored solution. | ||||
Diagram
1. Castor Wheels 2. Foot Cups 3. Legs 4. Stainless Steel Worktop 5. Socket 6. Glass 7. Fluorescent Lamp 8. Switch 9. HEPA Filter 10. Primary Efficiency Filter 11. Centrifugal Fan
Features
- Adjustable wind speed in multi-levels with digital display
- Centrifugal fan with high wind pressure and low noise
- High-quality stainless steel worktop, smooth corners and easy to clean
- Energy-efficient motor/blower with low power consumption
- Good looking design, comfortable lighting and legroom
- Equipped with caster wheels, flexible movement and easy to fix
- Micro-computer control panel makes operation easily
- Equipped with sash window for protecting working staffs health
- Comply with ISO 14644 standard
