Cleanroom ceilings(also called cleanroom false ceilings) are designed to provide structural support for cleanroom air purification equipment while integrating seamlessly with other cleanroom components. They combine with partition systems to make the cleanroom enclosure system.
Aomar offers multiple cleanroom ceiling systems to suit specific cleanroom application and operational requirements. Walkable ceiling and cleanroom ceiling grid system are most commonly used ceiling solutions, which can be widely used for variety of applications, such as pharmaceutical, semiconductor, medical device manufacturing, laboratory, operating room, etc. We welcome and encourage you to contact us for asking tailored cleanroom ceiling solutions.
Cleanroom Ceilings Solutions
Walkable Ceilings(Walk-on Ceilings)

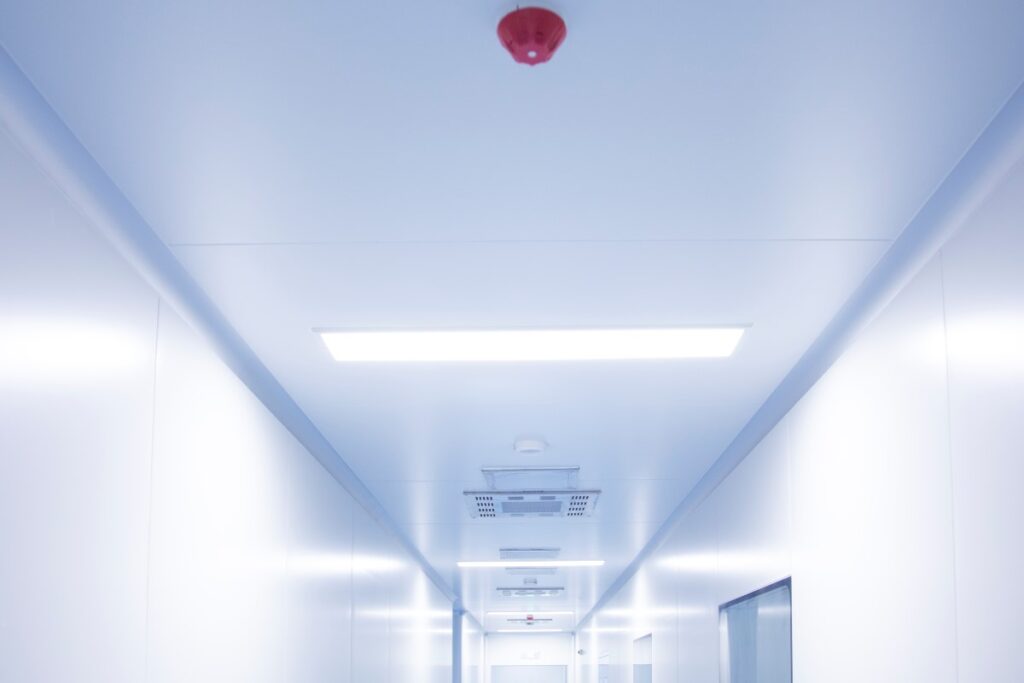

The walkable ceiling(also called Walk-on Ceiling or Walkable False Ceiling) features high loading capacity, which allows workers to walk and stay on the top of the cleanroom safely during the construction and maintenance of the facility.

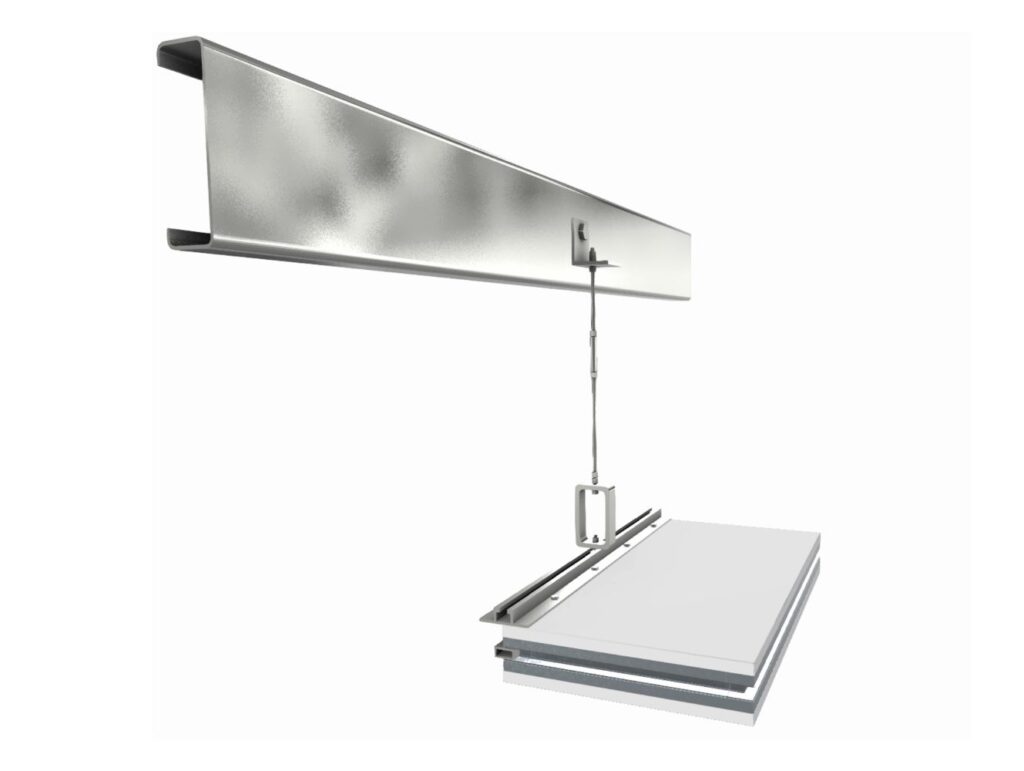

Walkable ceilings produced by KINROM adopt flush mounted design, ceiling panels are lifted by thread rod and hangers and connected by “中” type aluminum profile, which is hidden in the pre-designed structure, ensuring the ceiling bottom surface is smooth and dust free.
The pre-cutouts on celing panels are avilable to be made in our factory for matching all mechanical, electrical and plumbing works, which can reduce the pollution and cost during the installation on site and increase the construction efficiency.
Structure

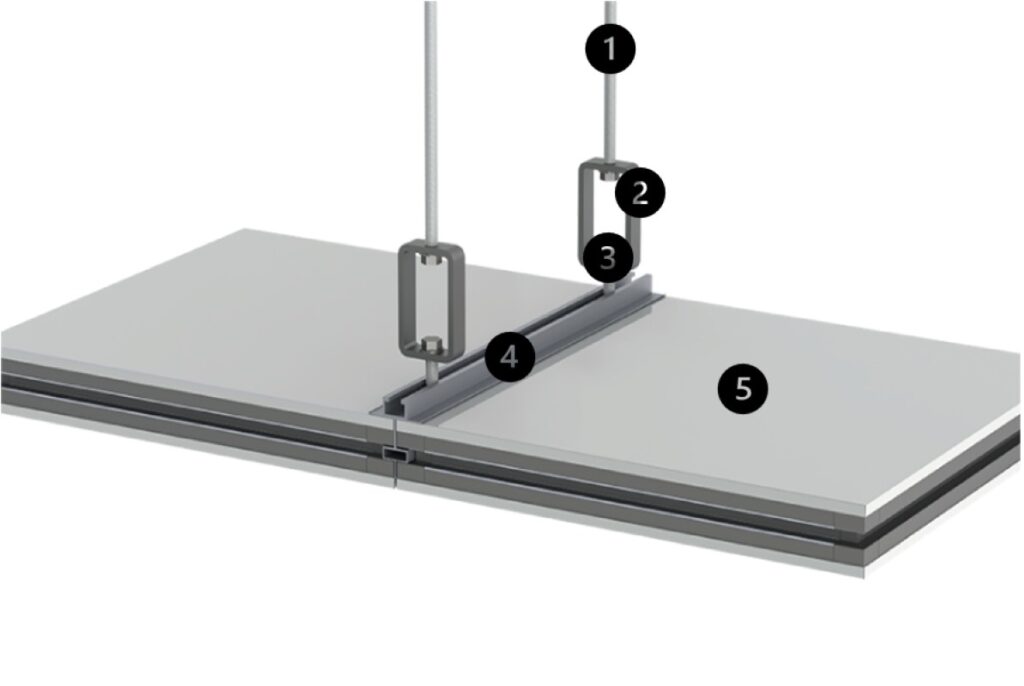

1. Thread Rod 2. Square Adjuster 3. Hex Nut 4. “中” Type Aluminum Profile 5. Walkable Ceiling Panel
Specifications
| Thickness(mm) | 50 / 60 / 75 / 100 |
| Standard Width(mm) | 980 / 1180 |
| Max. Length(mm) | 10000 |
| Surface Material | PPGI / PCGI / SS304 / HPL (High Pressure Laminate) |
| Steel Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 |
| HPL Thickness(mm) | 3 / 4 |
| Frame Thickness(mm) | 0.6 / 0.7 / 0.8 |
| Corner Material | GI / Plastic |
| Coating | PE / Anti-static PE / PVDF / HDP |
| Insulation | Rockwool, PU, Aluminum Honeycomb, MGO Board |
Applications
- Pharmaceutical
- Food Production and Processing
- Medical Device Manufacturing
- Electronic and Semiconductor
- Healthcare and Medical
- Operating Room
Features
- Easy and Quick Installation
- Flexible and Customizable
- Flush Mounted Design
- Superior Appearance
- Pre Cut-out in Factory
- Durable and Stable
Cleanroom Ceiling Grid System

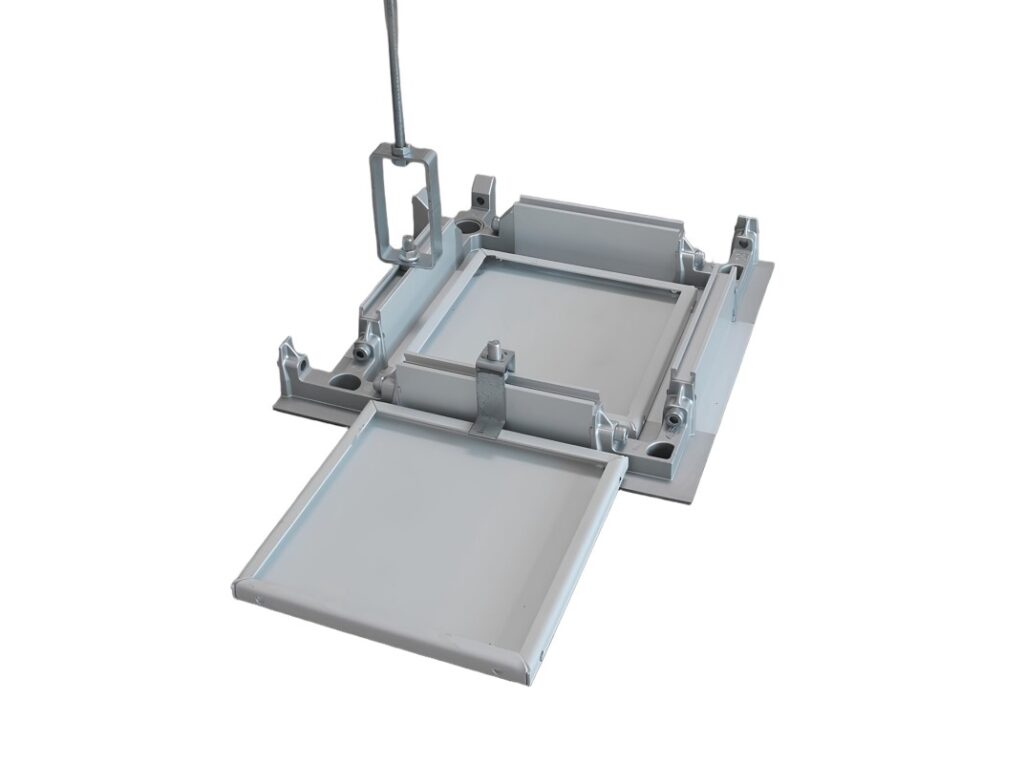

The cleanroom ceiling grid system is a significant component of cleanroom ceilings, which is made of extruded aluminium profile to protect from potential corrosive environment, such as chemical, moisture.
Cleanroom ceilings grids produced by KINROM adopt modular design aluminium alloy frame structure, which is with strong stability and strength and are lifted by thread rods to suspend cleanroom ceiling tiles and air purification equipment, such as FFU and HEPA.
It features easy to install and maintain, and is widely used in semiconductor, electronics, chip manufacturing and other industries. In addition to the standard cleanroom ceiling grid, it can also be optional with fire sprinkler heads and LED lights.
Structure

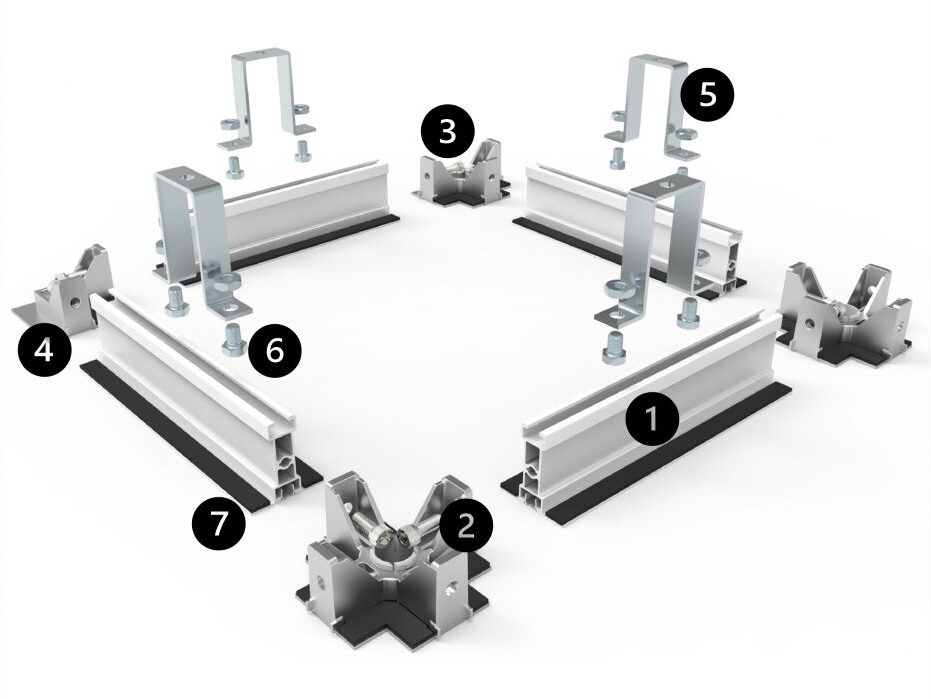

1. T Bar 2. “十” Type Connector 3. “T” Type Connector 4. “L” Type Connector 5. Ceiling Tiles Fixator 6. Screws 7. Sealing Strip
Specifications
| Blind Plate | Size(mm) | 1170*1170 / 1170*570 |
| Thickness(mm) | 1.5-2.0 | |
| Material | Anti-Static Painted Cold-Roll Steel Plate | |
| Blind Panel | Size(mm) | 1170*1170 / 1170*570 |
| Thickness(mm) | 13 | |
| Surface Material | Anti-Static Galvanzied Steel Plate | |
| Infill Material | Aluminum Honeycomb / Gypsum Board | |
| Sandwich Panel | Size(mm) | 1170*1170 / 1170*570 |
| Thickness(mm) | 50 | |
| Surface Material | Anti-Static Galvanzied Steel Plate | |
| Infill Material | Aluminum Honeycomb / Gypsum Board |
Applications
- Electronic
- Semiconductor
- Chip Fabrication
- Pharmaceutical
- Laboratory
- ICU and Hospital
Features
- Easy and Quick Installation
- Flexible and Customizable
- Recyclable Utilization
- Superior Appearance
- Corrosive Material
- Durable and Stable
