Cleanroom Doors
Cleanroom Doors | Hygienic Doors
Cleanroom doors are one of the most important components of the cleanroom system, which are used for controlling the air flow between the clean area and the non-clean area, preventing dust, microorganisms and other pollutants from entering the clean zone, controlling the indoor temperature, humidity and pressure to maintain the cleanliness of the production environment.
As one of leading cleanroom doors manufacturer in China, we can offer standard and customized solutions, such as swing doors, sliding doors, roll up doors, etc., which can meet the requirements of various industries such as pharmaceuticals, food, laboratories, medical and healthcare, operating rooms, etc.
Cleanroom Doors Solutions
KINROM focuses on the design, research & development and manufacturing of cleanroom doors, and offers tailored solutions in different industries, meeting related international standards such as GMP, ISO 14644-1.
We can produce a variety of cleanroom doors, such as GMP doors, sliding doors, roll up doors, emergency exit doors, etc., and it can be customized according to required size and specifications. It features good sealing, which can protect the production environment from contamination, reduce air pressure and energy consumption loss.
GMP doors are specifically designed for production environments that need to comply with Good Manufacturing Practice(GMP), such as pharmaceutical, biotechnology, medical device, food industry, etc.
Cleanroom sliding doors we designed adopt high-powered brushless DC motor with small size, which can be operated stably and durably without breakdown…
Cleanroom roll up doors(also called high speed doors or rapid roll doors) we design and manufacture can realize the high speed opening and closing by PLC control system…

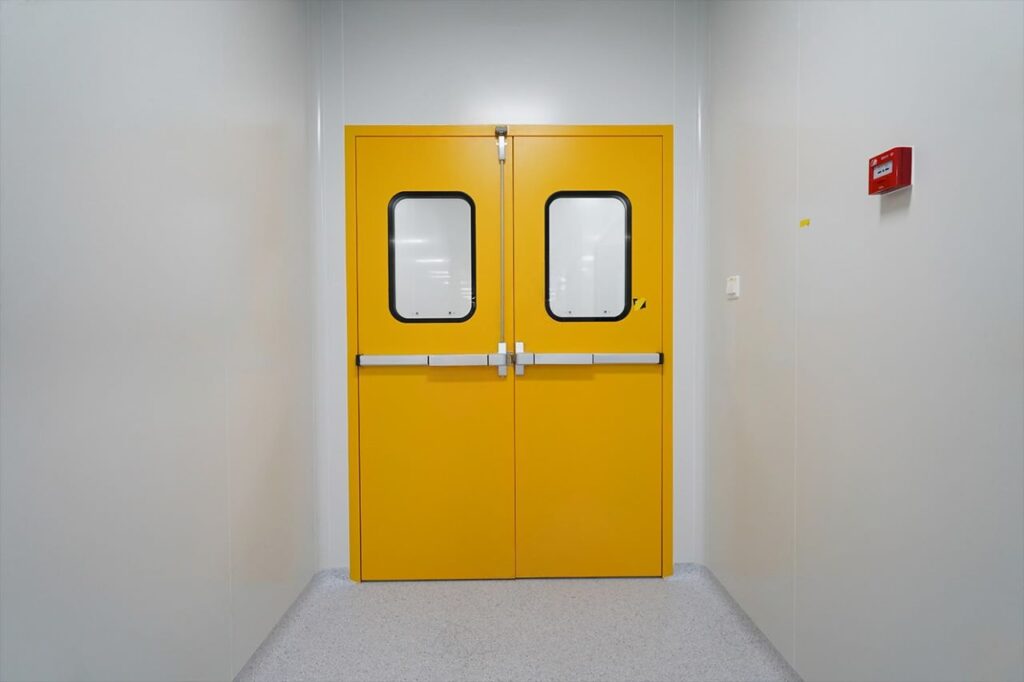

Our emergency exit doors(also called fire exit doors) are designed specifically for cleanrooms, allowing personnel to exit safely and quickly in emergency situations by pushing equipped panic bars…
Features
GMP & ISO 14644-1
Designed and manufactured to meet stringent international standards such as GMP (Good Manufacturing Practices) and ISO 14644. This ensures that our doors not only support your compliance needs but also provide a highly reliable, controlled environment that meets industry-specific regulatory requirements.
Easy to Clean
Engineered with a smooth, seamless surface and non-porous materials, and glass panels are flush mounted on the doors, making them exceptionally easy to clean and maintain. This design minimizes crevices and joints where contaminants could accumulate, ensuring a high level of cleanliness with minimal effort.
Good Air Tightness
Designed with high-quality sealing technology that ensures exceptional airtightness. The airtight seal surrounding doors and auto drop seal on the bottom prevent the cleanroom from particles and cross-contaminants, reducing engergy loss from HVAC systems, keeping temperature and humidity on consistant level.
Customizable & Flexible
We offer customizable and flexible solutions based on your specific requirements and standards. No matter what unique dimensions, materials, or specifications, we can customize cleanroom doors for your industry applications precisely. Meanwhile, our doors are optional with hardwares such as automatic opening machine, airlock system, door closers for preserving cleanliness more efficiently.
Flush Mounted
Feature the flush-mounted design that integrates smoothly with cleanroom walls, creating a seamless and hygienic surface that meets the highest standards for cleanliness while enhancing the overall aesthetic apprearance. This design eliminates crevices and gaps where particles can accumulate, making the doors easier to clean and helping to maintain dust-free environments.
Durable & Stable
Under our strict suppliers management principle, our cleanroom doors are produced with high-quality materials from top suppliers , ensuring durability and stability even under rigorous environments and withstanding frequently use and cleaning. With their durability, our cleanroom doors require minimal maintenance, reducing downtime and helping you focus on stable production operations without interruption.
Cleanroom Doors -The Complete FAQ Guide
Learn more about the cleanroom doors with this guide. We prepare some questions and answers for you.
- What Are Cleanroom Doors?
- What Are Key Features of Cleanroom Doors?
- What Are the Types of Cleanroom Doors?
- What Types of Materials Are Used for Cleanroom Doors?
- Where Are Cleanroom Doors Most Commonly Used?
- What Are the Most Common Control Methods for Cleanroom Doors?
- How to Request a Quote for KINROM Cleanroom Doors?
- Why Choose KINROM Cleanroom Doors?
What Are Cleanroom Doors?
Cleanroom doors are specialized doors designed for environments that demand stringent control of cleanliness, airtightness, and overall environmental conditions. As a critical component of cleanroom enclosure systems, these doors provide exceptional sealing performance to effectively prevent external contaminants such as dust and airborne particles from entering cleanrooms. This helps minimize indoor air pollution and reduces the risk of cross-contamination between clean zones with different cleanliness.
Furthermore, cleanroom doors reliably maintain pressure differentials between the clean area and adjacent spaces when closed, ensuring that the cleanroom remains under positive pressure. This prevents reverse airflow from less clean areas into the controlled environment, thereby consistently preserving the required cleanliness classification.
Picture 1 Cleanroom Doors
What Are Key Features of Cleanroom Doors?
As a critical component of the cleanroom enclosure system, cleanroom doors are designed not only with basic functionality but also to meet core requirements such as cleanliness, sealing, stability, and durability. Below are the key features in detail:
Excellent Airtightness
Equipped with airtight seals, they effectively prevent the intrusion of external particles, microorganisms, dust, and other contaminants. They reliably maintain pressure differentials between clean and non-clean areas, ensuring stable pressure in the clean space and preventing reverse airflow that could lead to cross-contamination.
Easy to Clean
Designed with a seamless, flat structure without hard-to-clean gaps, the smooth and non-porous surface allows for easy disinfection and cleaning. This design minimizes dust and microbial accumulation, reducing the risk of cross-contamination.
Corrosion Resistance
Suitable for high-frequency disinfection environments, these doors can withstand cleaning agents such as alcohol and VHP (vaporized hydrogen peroxide) without fading or corroding.
Cleanroom doors are essential for maintaining the integrity and safety of controlled environments. At KINROM, we ensure that our cleanroom doors meet the highest industry standards while offering customization to fit specific operational needs.
What Are the Types of Cleanroom Doors?
Cleanroom doors can be categorized based on their opening mechanisms. The following are the most common types, each with distinct features and suitable applications:
Advantages:
Excellent airtightness: Equipped with airtight seals to effectively maintain pressure differentials in cleanrooms.
Sturdy and durable: Simple structure and strong hinge structure ensure long service life.
High adaptability: Available in single-leaf, double-leaf and unequal double swing to fit various opening widths.
Cost-effective: Lower initial cost and easy maintenance.
Disadvantages:
Space-consuming: Requires adequate arc space for door swing, making it unsuitable for narrow passages or equipment-intensive areas.
Not ideal for high-frequency use: Frequent operation may lead to seal wear and reduced airtightness.

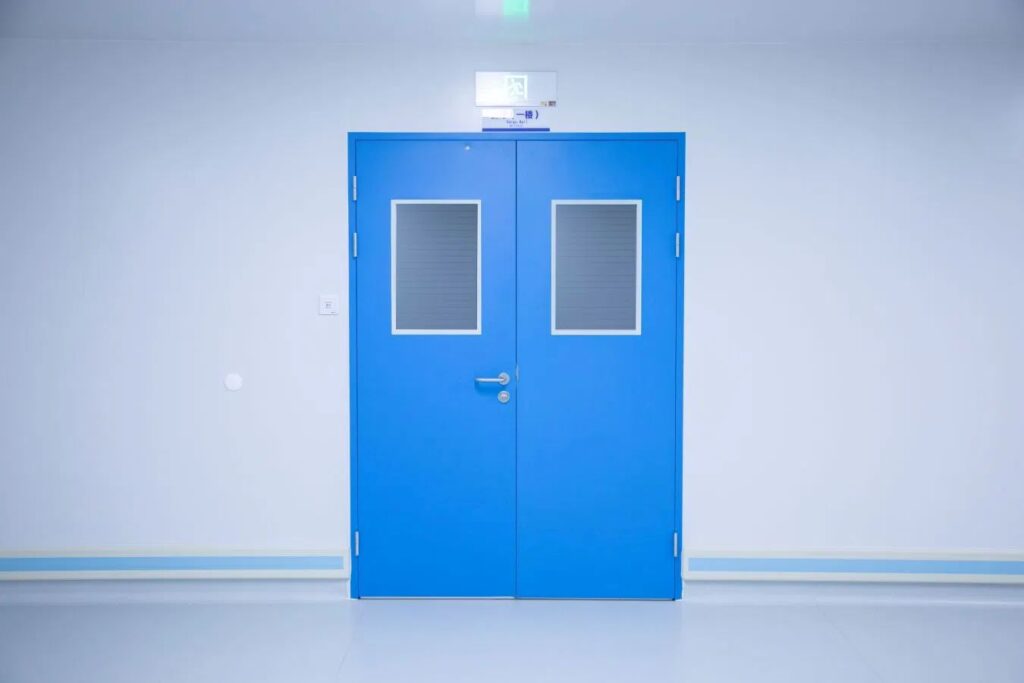

Picture 1 Cleanroom Swing Doors
Advantages:
Space-saving: Opens parallel to the wall without occupying passage space.
Automation-friendly: Can be integrated with sensors and access control systems for touch-free operation.
Smooth and quiet operation: Minimal noise disturbance to the clean environment.
Disadvantages:
Track prone to dust accumulation: Poorly designed floor tracks may become cleaning challenges.
Slightly lower airtightness than swing doors: Requires high-quality sealing between the track and door panel.
Demanding installation: Requires precise alignment of tracks and door panels.
Picture 2 Cleanroom Sliding Doors
Advantages:
High opening/closing speed: Typically exceeds 1 m/s, minimizing air exchange during operation.
Effective environmental separation: Helps maintain pressure and temperature/humidity stability.
Zero floor space usage: The door rolls up into the overhead compartment when it opens.
Disadvantages:
Relatively lower sealing performance: Not suitable for high-cleanliness areas (e.g., above ISO Class 5).
Limited durability and impact resistance: High-speed frequent operation may cause curtain or mechanism wear.
Higher cost: More expensive due to motor and control systems, with increased maintenance requirements.

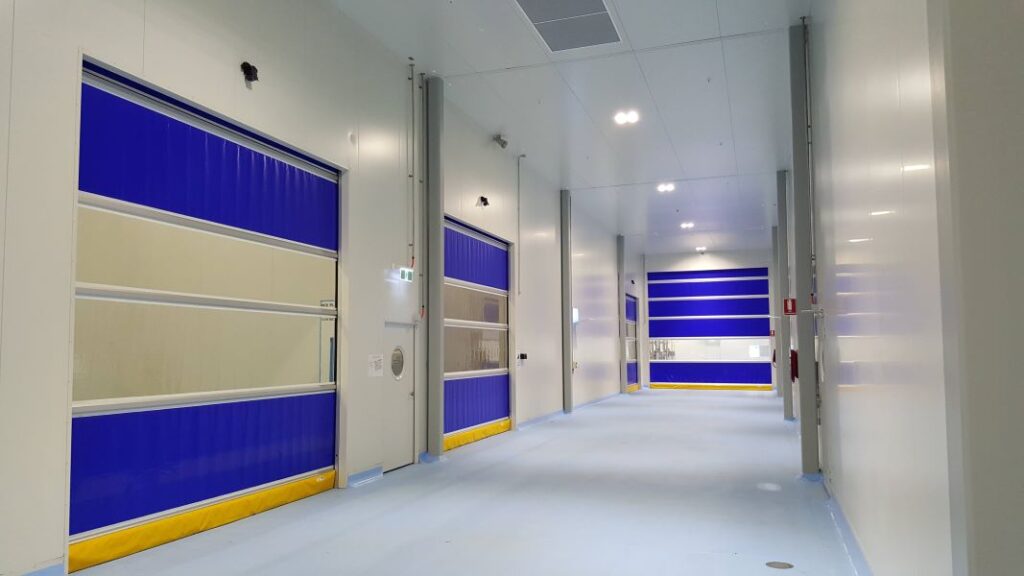

Picture 3 Cleanroom Roll Up Doors
Selection Guide:
For high airtight requirements (e.g., GMP Grade B areas, biosafety labs): Use swing doors with reliable sealing technology and automatic drop seals at the bottom.
For space-constrained or high-traffic passages: Automated sliding doors with overhead support and floor-track-free design are recommended to avoid cleaning issues.
For areas prioritizing speed over extreme cleanliness (e.g., logistics passages, changing rooms): Rapid-roll doors can improve efficiency while providing basic isolation.
What Types of Materials Are Used for Cleanroom Doors?
The choice of door panel material is critical to the durability, cleanability, and overall performance of a cleanroom door. Below is a detailed introduction to the three most commonly used materials:
1. Pre-coated Galvanized Steel
Description: Made from a galvanized steel substrate with an organic coating (e.g., polyester PE, fluorocarbon PVDF) applied via roller coating or spraying.
Advantages:
Cost-Effective: Offers the best economy among the three materials.
Color Variety: Available in multiple colors (e.g., RAL color chart) for easy integration into facility aesthetics.
Corrosion Resistance: The zinc layer provides basic rust prevention, and the surface coating resists daily cleaning agents.
Disadvantages:
Moderate Durability: Prone to scratches or coating wear under frequent cleaning or impact, potentially exposing the base material to rust.
Limited Suitability for Harsh Environments: Not ideal for areas with high humidity or frequent exposure to aggressive chemicals.
2. Stainless Steel (304 Grade)
Description: Typically made from 304 stainless steel with optional surface finishes such as hairline, brushed, or sandblasted for a premium industrial appearance.
Advantages:
Exceptional Durability and Strength: High mechanical strength, impact resistance, and long service life.
Excellent Corrosion Resistance: Resists common chemicals and moisture, meeting anti-rust and anti-corrosion requirements for most controlled environments.
Easy Sterilization: Non-porous, smooth surface prevents pollutant adherence and withstands aggressive cleaning and high-temperature sterilization.
Disadvantages:
Higher Cost: Material and processing expenses are significantly greater than those of coated steel.
Heavier Weight: Requires heavier-duty hinges and hardware due to the door’s weight.
3. High-Pressure Laminate (HPL)
Description: Consists of multiple layers of resin-soaked kraft and decorative paper fused under high heat and pressure, typically laminated onto a substrate.
Advantages:
Superior Wear and Scratch Resistance: High surface hardness ensures long-lasting appearance.
Decorative Flexibility: Available in wood grain, stone, solid colors, and other aesthetic finishes.
Chemical Resistance: Withstands common cleaning agents and generates minimal particles.
Disadvantages:
Low Impact Resistance: More brittle than metal; edges may chip if struck sharply.
Seam Management: Joints between panels require careful sealing to avoid contamination risks.
How to Choose?
For cost-effectiveness and essential performance: Choose Pre-coated Galvanized Steel.
For harsh environments requiring maximum durability and sterility: 304 Stainless Steel offers the best balance for most demanding applications.
Where appearance and abrasion resistance are top priorities: HPL is the ideal solution.
Where Are Cleanroom Doors Most Commonly Used?
Cleanroom doors are essential for any environment that requires strict control of airborne particles, microorganisms, temperature, humidity, or pressure differentials. They are most widely used in the following critical sectors:
Pharmaceutical & Biotechnology
The most demanding sector for cleanroom doors.
Applications: Drug manufacturing (e.g., oral liquids, injectables), sterile filling lines, vaccine production, biopharmaceutical facilities.
Key Requirements: Superior airtightness to maintain pressure gradients (e.g., GMP Grade A/B), corrosion-resistant surfaces tolerant to frequent sterilization (e.g., alcohol, hydrogen peroxide vapor).
Healthcare & Medical Facilities
Crucial for patient and staff safety.
Applications: Operating rooms, ICUs, sterile supply units, PCR labs, and isolation wards.
Key Requirements: High sealing performance, durability, automatic/sensor-operated operation for touch-free access, and compliance with medical safety standards.
Electronics & Semiconductor Manufacturing
Where microscopic contaminants cause significant product loss.
Applications: Semiconductor fabs, LCD/OLED production, precision instrument assembly, lithium battery cleanrooms.
Key Requirements: Low particle shedding, ESD protection, smooth and cleanable surfaces.
Food, Beverage & Cosmetics
Direct impact on consumer product safety and quality.
Applications: Aseptic filling of dairy, beverages, cosmetics, packaging areas.
Key Requirements: Food-grade compliant materials, resistance to moisture and cleaning chemicals, prevention of microbial ingress.
Research Laboratories
Essential for reproducible and contamination-sensitive R&D.
Applications: Biosafety labs (BSL-2/3/4), animal facilities (SPF environments), precision instrumentation rooms.
Key Requirements: Airtight containment (especially negative pressure in BSL-3/4), chemical resistance, and operational reliability.
At KINROM, we provide high-performance cleanroom door solutions that meet international standards such as GMP and ISO 14644, tailored to each application above.
What Are the Most Common Control Methods for Cleanroom Doors?
Cleanroom doors can be operated using various control methods to suit different cleanliness levels, frequency of use, and automation requirements. The most common options include:
1. Manual Control
Operated via handle or push plate.
Pros: Simple, cost-effective, reliable.
Cons: Requires physical contact; not ideal for high-traffic areas.
Use Case: Changing rooms, storage areas.
2. Electric Control
Opened/closed via push-button or remote.
Pros: Red contamination risk, effortless operation.
Cons: Requires power supply; higher installation cost.
Use Case: High-frequency passages.
3. Sensor-Actuated Automatic Control
Infrared or motion sensors enable hands-free operation.
Pros: No contact; improves cleanliness and flow.
Cons: Sensitivity and calibration are critical.
Use Case: Operating rooms, high-level clean zones.
4. Access Control Integration
Linked with card, biometric, or keypad systems.
Pros: Enhances security; logs entry/exit.
Cons: More complex system.
Use Case: Restricted areas (labs, storage).
5. Interlocked Systems
Prevents two doors from opening simultaneously to maintain pressure differentials.
Pros: Avoids cross-contamination.
Cons: Requires professional commissioning.
Use Case: GMP Grade A/B rooms, BSL labs.
6. Foot/Knee Switches
Hands-free activation via pedal or knee lever.
Pros: Prevents surface contact.
Cons: Requires user action.
Use Case: Sterile environments (ORs, food packing).
How to Choose?
General Areas: Manual or electric control.
High-Cleanliness Zones: Sensor or foot control.
Secure Zones: Access control or interlocking.
High-Traffic Zones: Sensor or fast-acting electric doors.
How to Request a Quote for KINROM Cleanroom Doors?
To receive an accurate and timely quotation for our cleanroom doors, please provide the following information. The more details you share, the better we can match our solutions to your needs and offer competitive pricing.
Application Environment
Industry and specific use case (e.g., pharmaceutical GMP area, electronics cleanroom, hospital operating theater).
Door Type and Operation Mode
Type: Swing door, sliding door, rapid roll-up door, etc.
Control method: Manual, electric, sensor-activated, interlocked, etc.
Size and Configuration
Opening dimensions (width × height × wall thickness).
Single or double leaf, with or without windows, and window size if needed.
Material Requirements
Panel material: e.g., 304 stainless steel, powder-coated steel, HPL.
Quantity
Number of doors and any potential future needs.
Accessories and Integration
Additional features: Windows, vision panels, door interlock systems, access control integration.
Why Choose KINROM Cleanroom Doors?
KINROM cleanroom doors are engineered for critical environments where safety, cleanliness, and reliability cannot be compromised. Here is what sets our doors apart:
Durable & Cleanable Materials
Options include 304 stainless steel, powder-coated steel, aluminum, and HPL—all resistant to chemicals, corrosion, and frequent disinfection.
Smooth, non-porous surfaces eliminate dust traps and support strict hygiene protocols.
Customizable Design
Tailored to your opening dimensions, pressure requirements, and aesthetic needs.
Available in swing, sliding, and rapid-roll types with various window and finish options.
Compliance with International Standards
Designed and tested in accordance with ISO 14644, GMP, and FDA requirements.
Ideal for pharmaceuticals, electronics, healthcare, and biotech facilities.
Reliability and Low Maintenance
Robust hardware and high-quality components ensure long service life with minimal downtime.
Designed for high-frequency use in demanding environments.
Expert Technical Support
KINROM offers end-to-end service—from design and customization to installation guidance and aftersales support.
Global project experience across a wide range of industries.
Whether your priority is contamination control, safety, efficiency, or total cost of ownership, KINROM delivers doors you can trust.

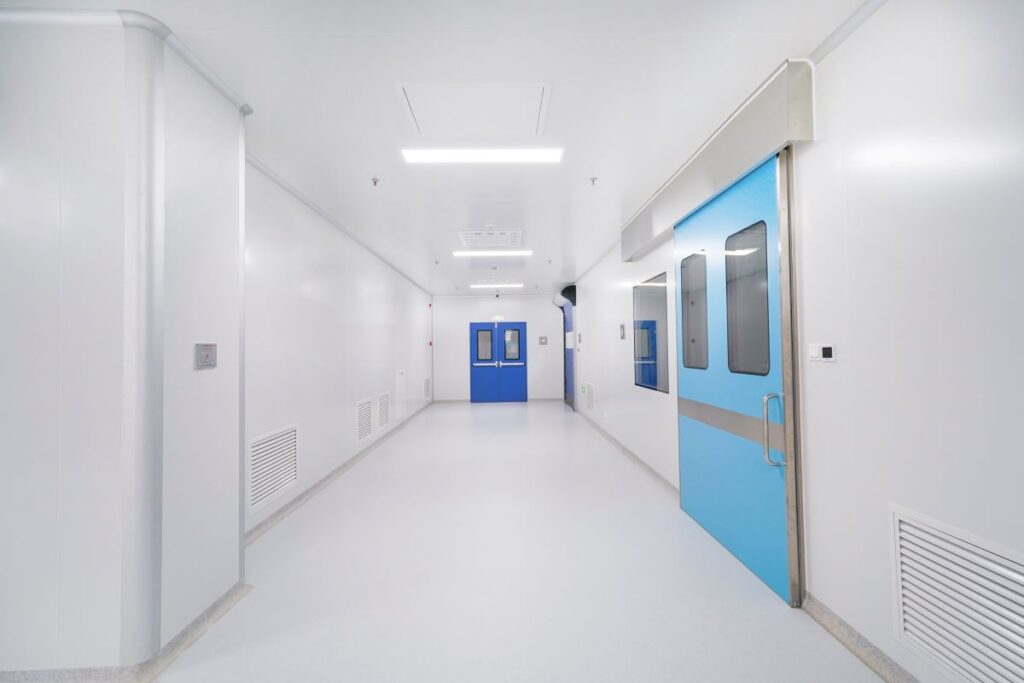

Cleanroom Doors from Our Projects
