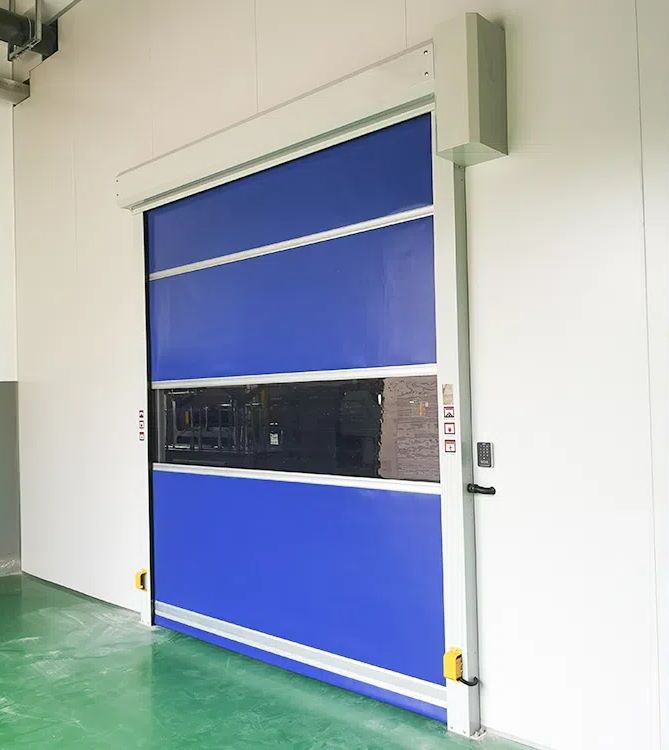

Cleanroom Roll Up Doors
Cleanroom Roll Up Doors | Rapid Roll Doors | High Speed Doors
Cleanroom roll up doors(also called high speed doors or rapid roll doors) we design and manufacture can realize the high speed opening and closing by PLC control system. The opening speed can be up from 0.8m/s to 2m/s, which can effectively reduce the waiting time of working staff and prevent the cross-contamination caused by the movement of people and goods between different clean level areas, and they are widely used in cleanroom environments such as food manufacturing and processing, pharmaceutical, electronics, etc.
High speed doors we engineered adopt advanced zipper structure sealing to prevent dust, bacterias, and noise from entering cleanrooms. It also has the characteristics of heat insulation, insect prevention, and windproof, which helps to maintain the temperature and humidity in the cleanroom and save energy.
Rapid roll doors can be optional with sensors, remote controls, press buttons, and other automatic control units for opening and closing, and also can be equipped with anti-collision function and emergency stop device to prevent working staffs from accidents during operation.
Cleanroom Roll Up Doors Specifications
| Curtain | PVC |
| Curtain Thickness | 0.8mm - 1.2mm |
| Door Frame | Galvanized Steel / 304 Stainless Steel |
| Door Width | 600 - 4500mm |
| Door Height | 900 - 5000mm |
| Max. Opening Speed | 1.5m/s |
| Max. Closing Speed | 0.8m/s |
| Control Method | Press Button / Motion Sensor / Pull Switch Induction Loop / Infrared Sensor / Remote Control |
Cleanroom Roll Up Doors Features
1. High Speed Opening and Closing
The Maximum opening speed can reach 2m/s, which can effectively reduce the air exchanges, maintain the cleanliness, and reduce the waiting time when working staffs and materials enter or exit the cleanroom while improving work efficiency.
2. Good Airtightness
It adopts special goove sealing design to prevent containments from entering the clean zone, which can reduce the loss of air pressure, temerature, humidity in the cleanroom and energy consumption.
3. High Safe Performance
It is fitted with anti-collision and emergency stop device to prevent accidents during operation. Meanwhile, the rapid roll door is equipped with safety sensors to prevent working staffs from being caught during the closing process, ensuring the whole operation is safe.
4. Automatic Control
It can be optional with different automatic control systems based on special operation requirements, which is more convenient for working staffs.
5. Customizable
The door is customizable based on the size and layout of various cleanrooms to meet the specific needs.
6. Durable and Maintenance Free
The door curtain is made of high-strength material, which is tear-resistant, tough and durable. Cleanroom roll up doors are driven by top brand motors, which can be with high stability.

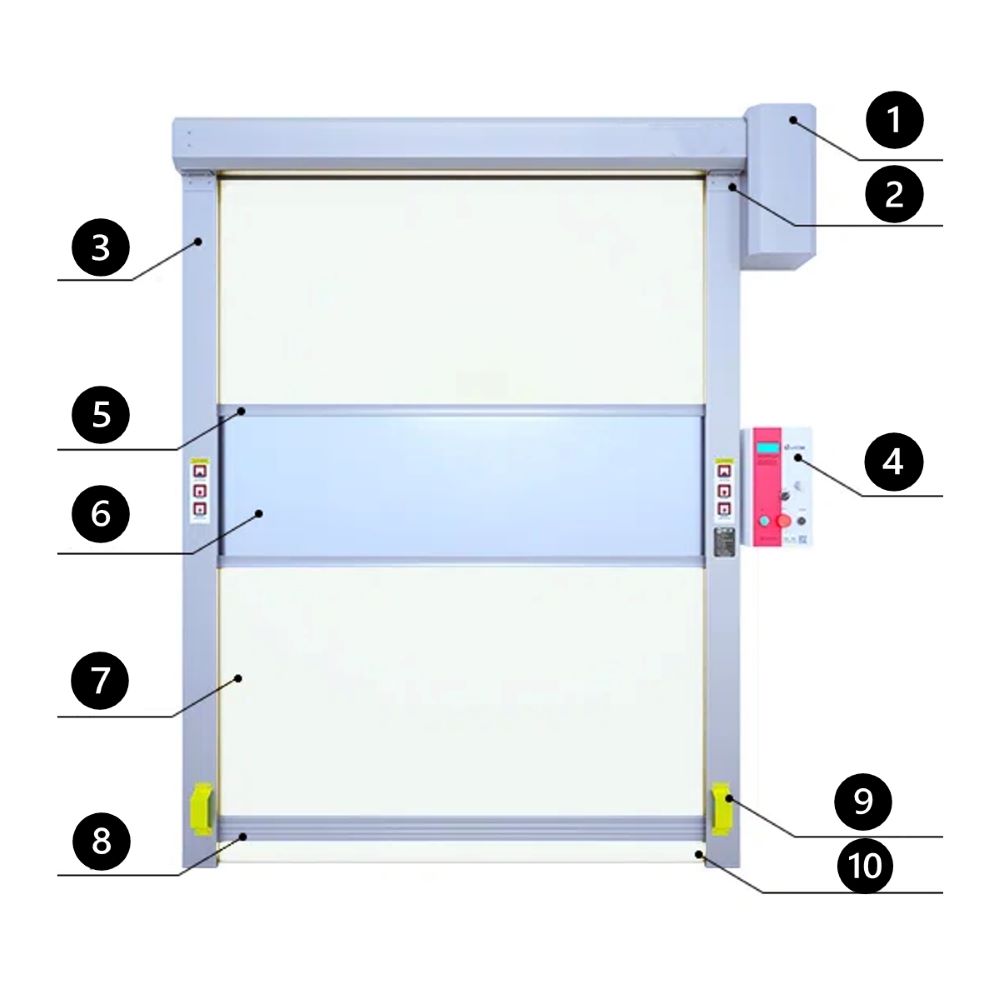

Structure
1. Motor 2. Hinge 3. Frame 4. Control System 5. Anti-Wind Stick 6. Window 7. PVC Curtain 8. Bottom Beam 9. Infrared Sensor 10. Air Bag Sealing
Control Options
1. Motion Sensor 2. Induction Loop 3. Infrared Sensor 4. Remote Controller 5. Press Button 6. Pull Switch
