HPL Pharma Door
HPL Pharma Doors
HPL pharma door is a kind of aluminum cleanroom door, which is made of high pressure laminate(HPL) sheet surface and aluminum alloy frame. It features anti-scratch, impact resistant, non-fading, chemical resistant, easy to clean, which is most commonly used for production environment that need to be disinfected by strong chemicals frequently.
The door surface can be optional with 3mm or 4mm HPL sheet, and flame-retardant paper honeycomb, aluminum honeycomb, rockwool, PU can be selected as the insulation according to customer requirements.
As one of leading cleanroom doors manufacturer in China, we can offer standard and customized HPL hygienic doors, which can meet the requirements of various industries such as pharmaceuticals, food, laboratories, medical and healthcare, operating rooms, etc.
HPL Pharma Doors Specifications
| Door Surface | High Pressure Laminate Sheet |
| Surface Thickness | 3mm / 4mm |
| Door Frame | Aluminum Alloy |
| Infill | Paper Honeycomb / Aluminum Honeycomb / PU / Rockwool |
| Door Width | 450 - 2500mm |
| Door Height | 750 - 2500mm |
| Door Thickness | 50mm or Customized |
| Door Leaf Type | Single / Unequal / Double |
| Glass Panel Material | Tempered Glass / Ultra Transparent Glass / Frosted Glass |
| Control Options | Manual / Press Button / Sensor / Access Control System |

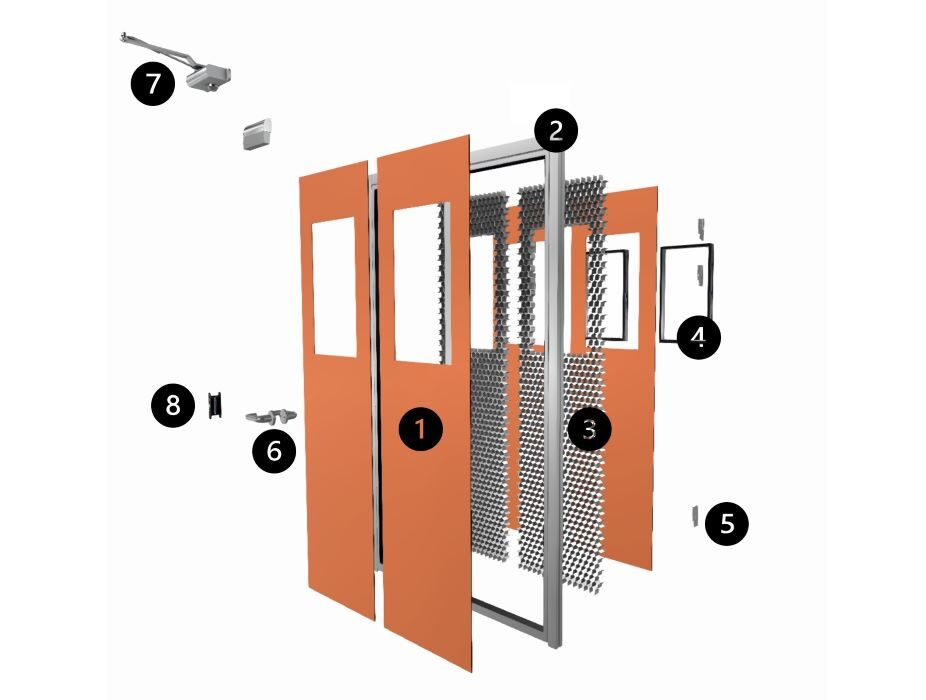

Structure
| No. | Component | Optional |
| 1 | Door Surface | |
| 2 | Door Frame | |
| 3 | Insulation | |
| 4 | Glass Panel | √ |
| 5 | Hinges | |
| 6 | Handle & Lock | |
| 7 | Door Closer | √ |
| 8 | Air Lock | √ |
Features
- Strong structure, light weight and good looking.
- Flush mounted design and easy to clean.
- Customizable based on special requirements.
- Good sealing performance, comply with GMP & ISO.
- Anti-scratch, impact resistant and strong chemical proof.
Applications
- Pharmaceutical
- Cosmetics
- Laboratory
- Biotechnology
- Medical Device
