Steel Pharma Door
Steel Pharma Doors | Hygienic Doors
Steel pharma door is made of high-quality galvanized iron sheet with stable structure and strong impact resistance, it features durability, good sealing, easy to clean, cost-effective, which is the most commonly used cleanroom door.
The door surface can be optional with antistatic or fluorocarbon coating, and flame-retardant paper honeycomb, aluminum honeycomb, rockwool, PU can be selected as the insulation according to customer requirements.
As one of leading cleanroom doors manufacturer in China, we can offer standard and customized steel hygienic doors, which can meet the requirements of various industries such as pharmaceuticals, food, laboratories, medical and healthcare, operating rooms, etc.
Steel Pharma Doors Specifications
| Door Surface | Galvanized Steel |
| Surface Thickness | Galvanized Steel : 0.8mm / 1.0mm |
| Door Frame | Galvanized Steel |
| Infill | Paper Honeycomb / Aluminum Honeycomb / PU / Rockwool |
| Door Width | 450 - 2500mm |
| Door Height | 750 - 2500mm |
| Door Thickness | 50mm or Customized |
| Door Leaf Type | Single / Unequal / Double |
| Glass Panel Material | Tempered Glass / Ultra Transparent Glass / Frosted Glass |
| Control Options | Manual / Press Button / Sensor / Access Control System |

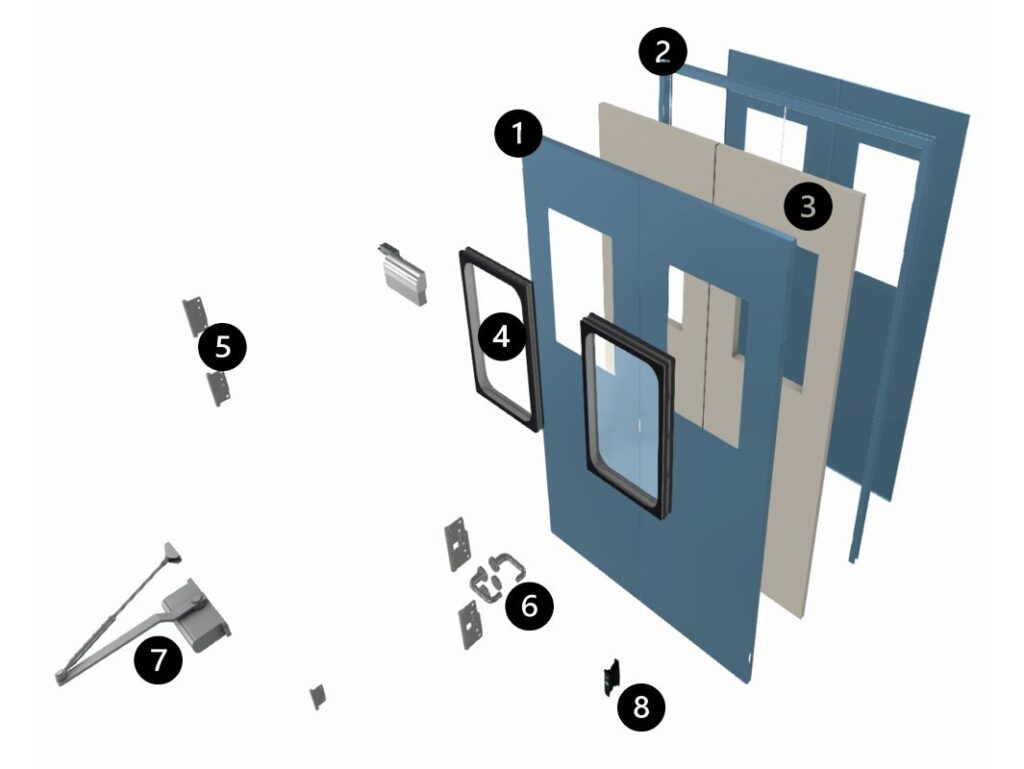

Structure
| No. | Component | Optional |
| 1 | Door Surface | |
| 2 | Door Frame | |
| 3 | Insulation | |
| 4 | Glass Panel | √ |
| 5 | Hinges | |
| 6 | Handle & Lock | |
| 7 | Door Closer | √ |
| 8 | Air Lock | √ |
Features
- Strong structure, durable and good looking.
- Flush mounted design and easy to clean.
- Cost effective and wide application.
- Customizable based on special requirements.
- Good sealing performance, comply with GMP & ISO.
Applications
- Pharmaceutical
- Cosmetics
- Laboratory
- Electronics
- Medical Device
