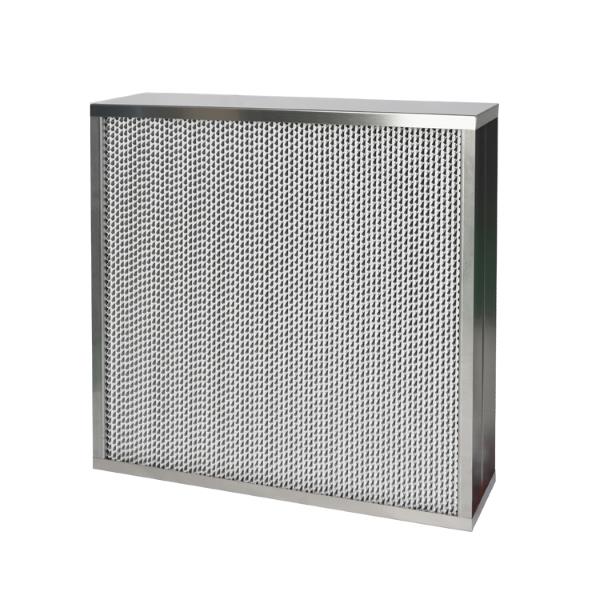

Deep Pleat HEPA Filter | Separator HEPA Filter

Deep pleat HEPA filters, also called separator HEPA filters, adopt hyperfine glass fiber as the filter material, which is separated by folded offset paper, aluminum foil and other materials, sealed with polyurethane sealant. The outer frame is optional with galvanized sheet, stainless steel sheet, and aluminum alloy profile.

Specifications:

Outer Frame	Galvanized Steel, Stainless Steel, Aluminum Alloy, Fire Proof Plate
Filter Material	Moisture Proof & Fire Retardant Glass Fiber
Separator	Curved Aluminum Foil / Offset Paper
Filtration Effeciency	H13 / H14
Max. Temperature	≤80℃
Suggested Final Pressure Drop	800Pa (High Volume), 600Pa (Standard Volume)
Sealant	Fire Retardant PU
Grid Guard	Sprayed Steel Mesh (Optional)

Product Features

1. Excellent Performance

With outstanding performance, such as low pressure drop, uniform air flow, good clogging capability, big air volume, etc.

2. Moisture Proof & Fire Retardant

High quality ultra fine glass fiber is adopted as the filter material, the density is high and it is with excellent moisture proof and fire retardant performance.

3. Long Service Life

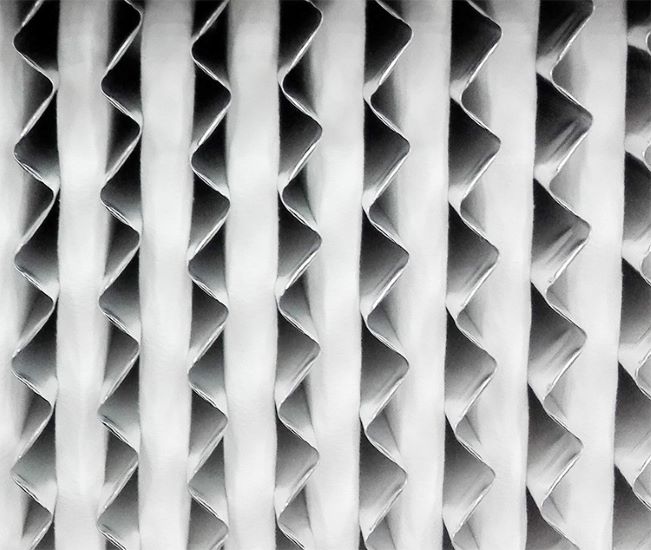

Curved separators can keep spaces between pleats, and wedge-shaped pleat design is adopted for protecting filter materials from damaging, which can prolong the life span.

4. 100% Leak Tightness

Filter materials are fully infiltrated and sealed by polyurethane sealant, which can thoroughly prevent any potential leakage between filter materials and outer frame. After production, leakage tests are done for ensuring 100% leak tightness.
