Disposable HEPA Filter
Disposable HEPA Filter
Disposable HEPA filter is mainly composed of static pressure box and non- separator filters, it features compact structure, good ventilation, easy to install, low cost, save space, etc. It can connect with air duct directly, which is suitable for the limited installation spaces.
Specifications:
| Outer Frame | Aluminum Alloy |
| Filter Material | Hyperfine Moisture Proof Glass Fiber |
| Thickness(mm) | 125 / 150 / 175 |
| Filtration Effeciency | H13 / H14 / U15 / U16 |
| Max. Temperature | ≤80℃ |
| Suggested Final Pressure Drop | 400Pa |
| Sealant | Fire Retardant PU |
| Grid Guard | Sprayed Steel Mesh |
Product Features
- Save Cost
- Easy to Install
- Light Weight
- Compact Structure
- Low Pressure Drop
- 100% Factory Test
Product Dimensions
| Size (W*L*T) mm | Rated Air Volume (m³/h) @0.45m/s | Initial Pressure Drop (Pa) | |
| H13 | H14 | ||
| 600*600*152 | 600 | 130 | 150 |
| 600*1210*152 | 1200 | 130 | 150 |
| 570*1170*152 | 1000 | 130 | 150 |
| 600*600*175 | 600 | 100 | 110 |
| 600*1210*175 | 1200 | 100 | 110 |
| 570*1170*175 | 1000 | 100 | 110 |

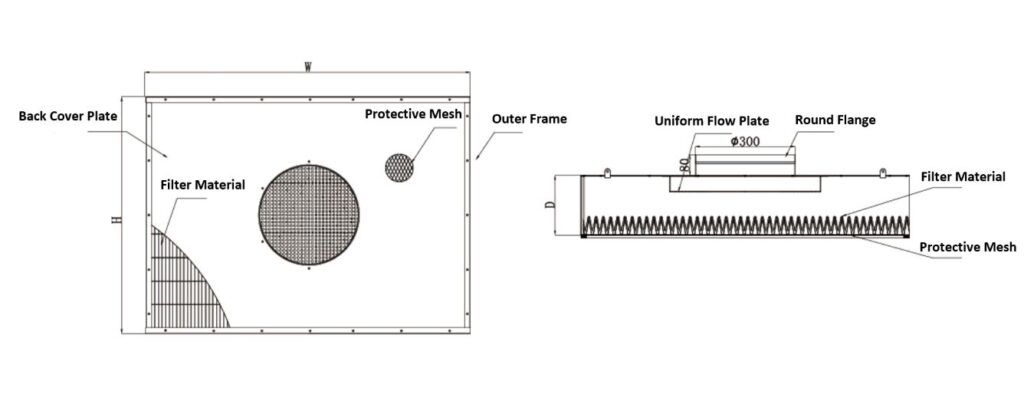

Product Diagram
Product Applications
- Micro-electronics
- Bio-pharmaceutical
- Precise Instrument manufacturing
- Food processing
- PCB printing
- Hospital
- Laboratory
- Medical device manufacturing
