Cleanroom Panels
Cleanroom Panels Manufacturer
The cleanroom panel is a kind of sandwich panels used in cleanrooms. It is mainly composed of surface material, infill, frame, glue, etc., and is widely used in pharmaceutical, food production and processing, electronics, semiconductors, medical device manufacturing, operating rooms, laboratories and other applications.
KINROM Cleanroom panels have the characteristics of dust-free, non-outgassing, non combustible, energy-saving, anti-corrosive, etc. It adopts simple structural design, which is durable, easy to install, easy to clean, and it is customizable according to the special needs of customers and meet all kinds of international standards, such as GMP, ISO, etc.
If you are looking for a trustable cleanroom panels manufacturer, KINROM will be your first choice. Any requirement on cleanroom panels, please contact us to start the process of cleanroom solution customization.
Applications
Pharmaceutical
Semiconductor
Food Processing
Hospital
Medical and Healthcare
Laboratory

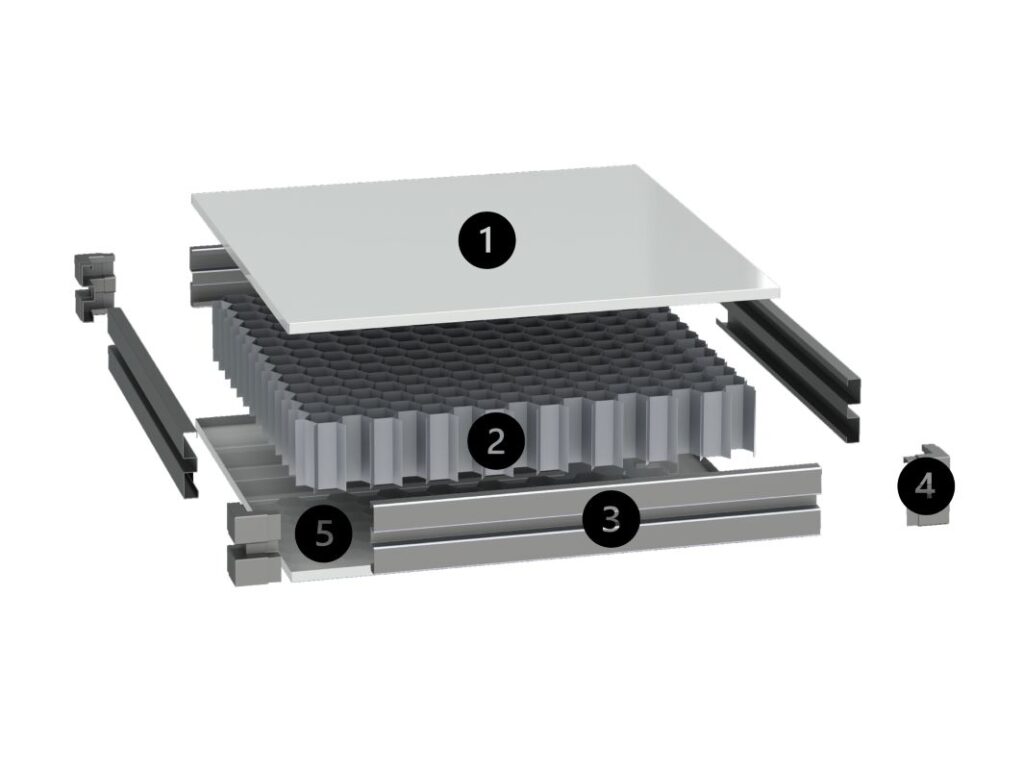

Structure
Features
Modular Design
KINROM Cleanroom Panels adopt modular design, and further cutting or processing is not required during installation on site.
Superior Appearance
Adopt flush mounted design, which can be compatible with cleanroom doors, windows and other cleanroom equipement well.
Customizable
The specifications like size, thickness, panel surface, coating, infill is customizable according to the application and enviroments.
Excellent Performance
All kinds of performace are beyond industrial standards, such as flatness, fire resistance, bonding strength, etc.
Flexible and Optional
For reducing installation cost and difficulties on site, cutouts and conduits can be pre-engineered in our factory before delivery.
Energy Saving
KINROM cleanroom panels are well insulated for better energy saving and cleanroom enviroment control, such as temperature and humidity.
Cleanroom Panels Solutions
Cleanroom panel surface materials are optional with galvanized steel, stainless steel and high pressure laminate(HPL), and panel cores are available in rockwool, polyurethane(PU), expanded polystyrene(EPS), paper honeycomb, aluminum honeycomb, gypsum board, MGO board, etc. Cleanroom panels are completely sealed by extruded aluminum profiles, which can effectively improve the mechanical performance of panels, such as thermal insulation, sound insulation, stability, bending bearing capacity, etc.

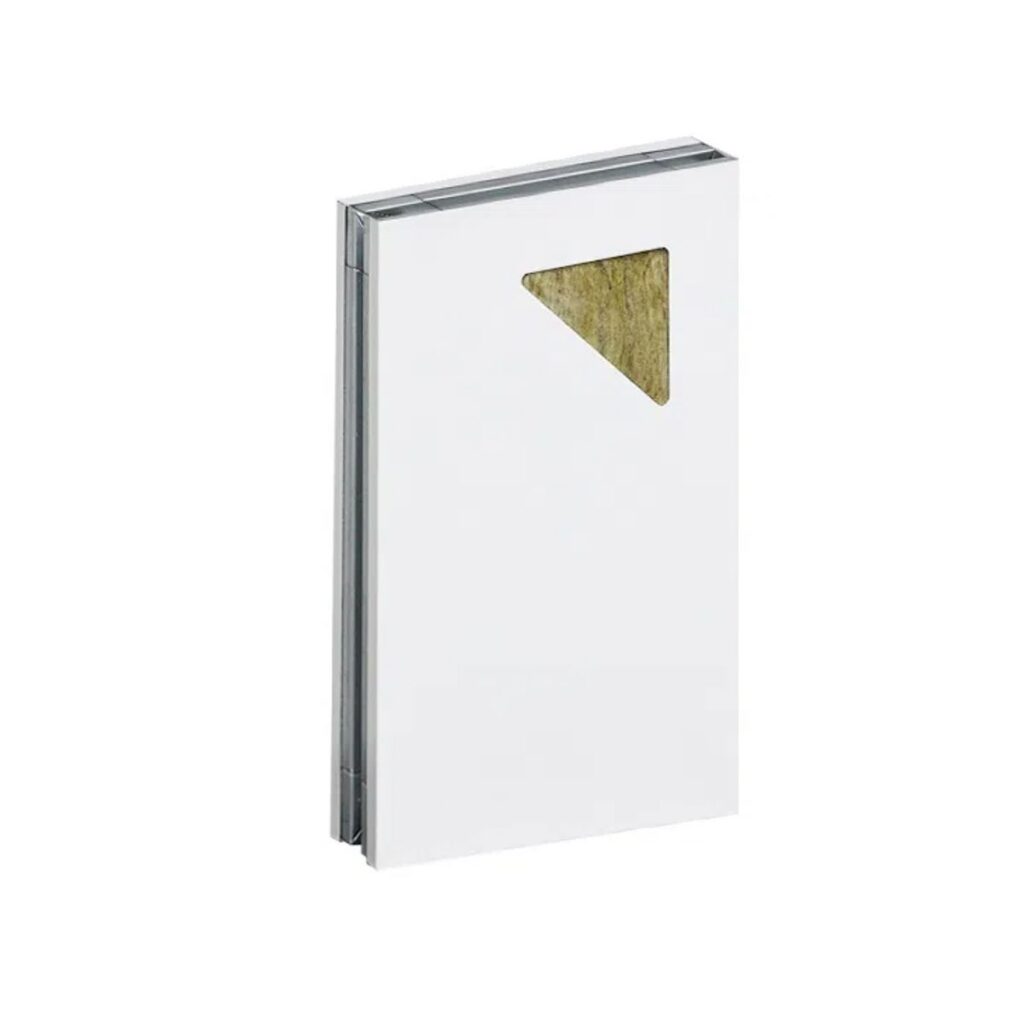

Rockwool Cleanroom Panel
Rockwool is the most commonly adopted as the infill of cleanroom panels. It is made of mineral rock with a super high ignition point and excellent fire resistance. The rockwool does not shrink or deform when it is burned without producing toxic smoke. Meanwhile, it has excellent thermal insulation performance, dimensional stability and aging resistance, and effectively limits the transfer of heat.
Rockwool is with superior sound absorption characteristic, the unique fiber structure is tighter than traditional insulation materials, effectively reducing airflow and sound transmission.
| Surface | PPGI / PCGI / SS304 |
| Surface Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 |
| Infill | Rockwool |
| Density(kg/m³) | 100 / 120 |
| Thickness(mm) | 50, 60, 75, 100 |
| Max. Length(mm) | 10000 |
| Width(mm) | 980 / 1180 |
| Standard Color | White Grey |

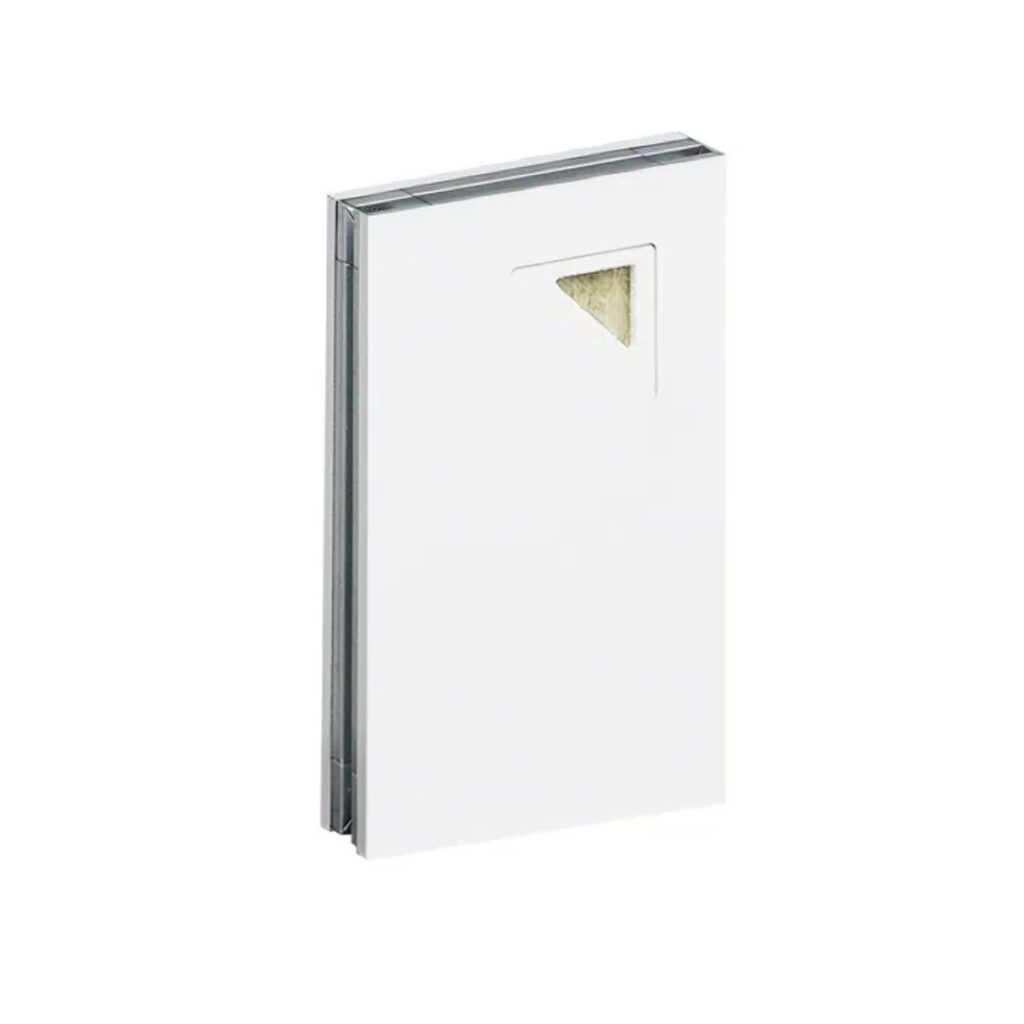

Rockwool & MGO Cleanroom Panel
Compared with rockwool, MGO(Magnesium Oxide) sheet is with better fire resistance and mechanical properties, higher material strength and flatness. Meanwhile, rockwool has stronger thermal insulation, heat insulation and noise reduction capabilities. The core material of rockwool & MGO cleanroom panels is composed of rockwool and single or double layer of MGO sheet. It combines the advantages of both MGO and rockwool, greatly improving the bending strength of cleanroom panels. It is mainly used as cleanroom walkable ceilings and is widely used in pharmaceuticals, electronics, laboratories, food factories and other applications.
| Surface | PPGI / PCGI / SS304 |
| Surface Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 |
| Infill | Rockwool & MGO |
| Density(kg/m³) | 100 / 120 |
| Thickness(mm) | 50, 60, 75, 100 |
| Max. Length(mm) | 10000 |
| Width(mm) | 980 / 1180 |
| Standard Color | White Grey |

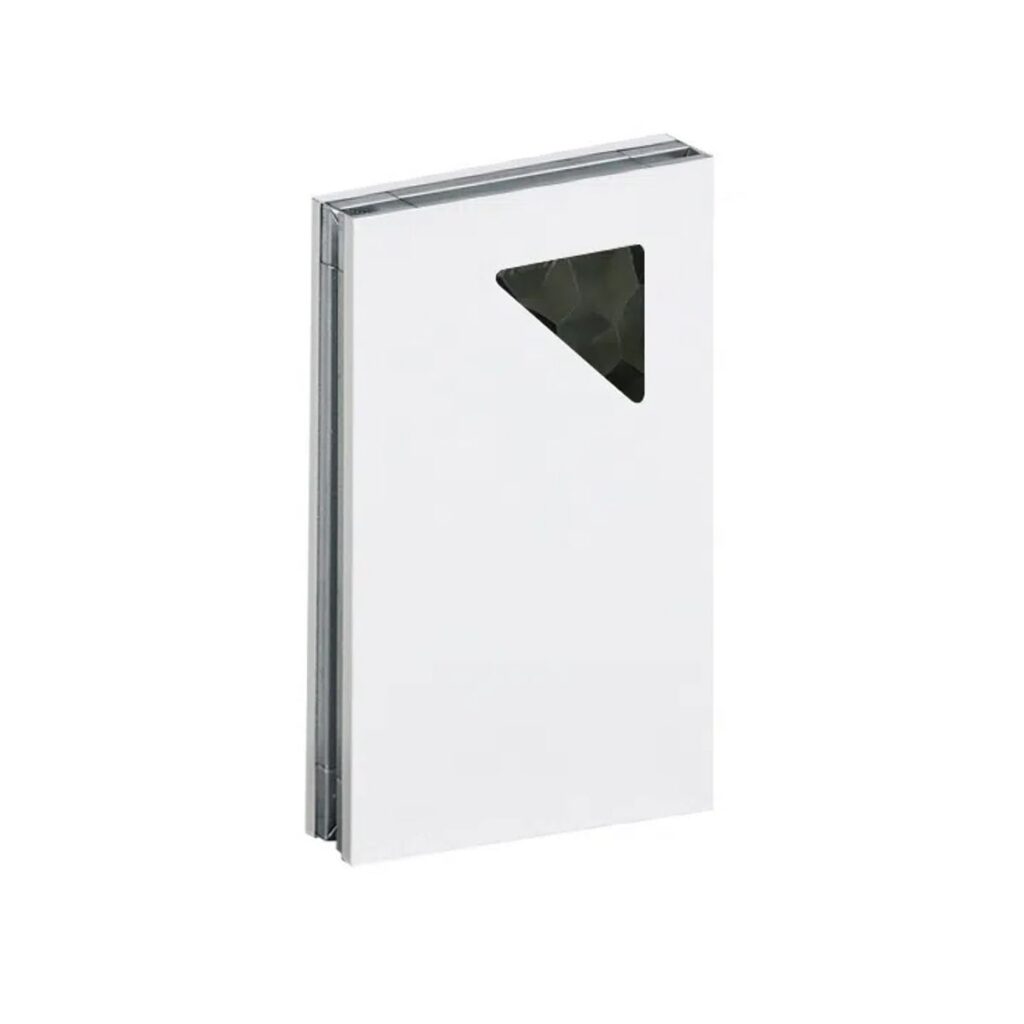

Aluminum Honeycomb Cleanroom Panel
Aluminum honeycomb adopts hexagonal structure processed by aluminum alloy, it features stable structure and high strength while consuming very few material. The strength of aluminum honeycomb is easy to be adjusted by changing the thickness, weight, hole size and height. In addition, the aluminum honeycomb cleanroom panel has excellent properties, such as fireproof, moisture-proof and corrosion-resistant. Compared with other core materials, the density and weight of aluminum honeycomb is low. It is also an environmentally friendly material that does not volatilize harmful gases and pollute the environment.
| Surface | PPGI / PCGI / SS304 |
| Surface Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 |
| Infill | Aluminum Honeycomb |
| Thickness(mm) | 50, 60, 75, 100 |
| Max. Length(mm) | 10000 |
| Width(mm) | 980 / 1180 |
| Standard Color | White Grey |

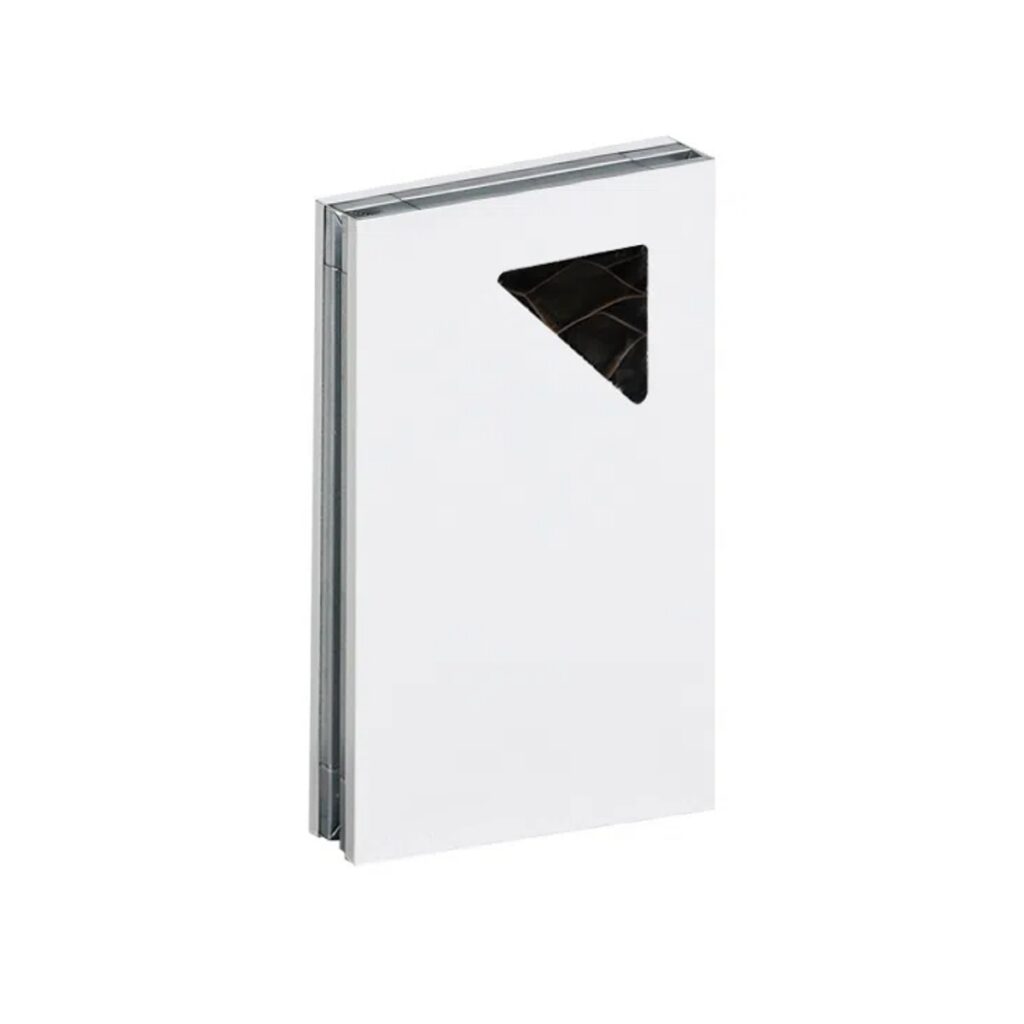

Paper Honeycomb Cleanroom Panel
The paper honeycomb adopts the hexagonal structure, with high compressive strength, tensile strength. It is an environmental building material, compared with other cleanroom panels, it has the characteristics of light weight, good straightness, beautiful appearance.
Considering the fire resistance, flame retardant paper honeycomb is used as the core material.
| Surface | PPGI / PCGI / SS304 |
| Surface Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 |
| Infill | Paper Honeycomb |
| Thickness(mm) | 50, 60, 75, 100 |
| Max. Length(mm) | 10000 |
| Width(mm) | 980 / 1180 |
| Standard Color | White Grey |

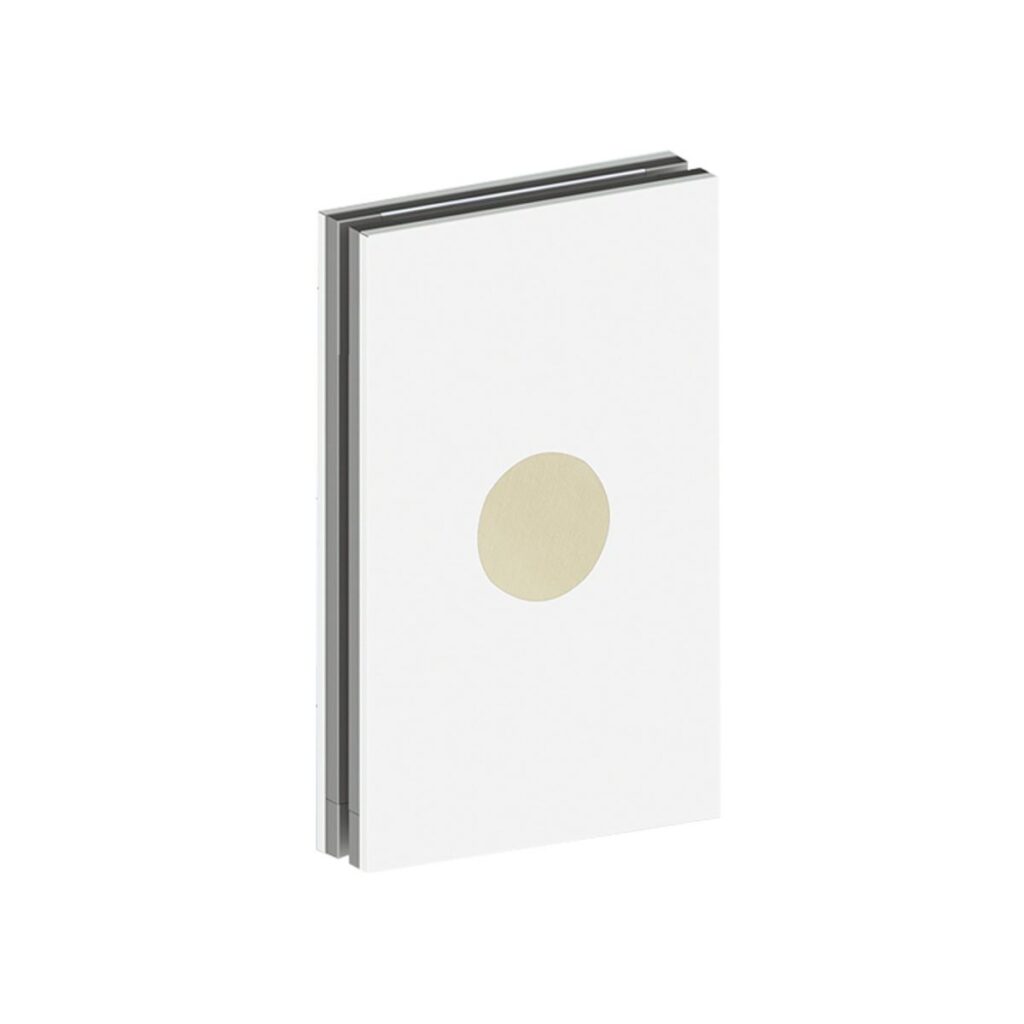

PU Cleanroom Panel
The PU cleanroom panel adopts foamed polyurethane as the infill, with extremely low thermal conductivity, and it can effectively insulate heat conduction and save energy. Meanwhile, it has good sound insulation performance and can reduce the noise transmission. Polyurethane is with higher strength and rigidity, light weight, excellent bending resistance, and can be used as cleanroom wall panels and ceiling panels.
| Surface | PPGI / PCGI / SS304 |
| Surface Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 |
| Infill | 40±2kg/m³ PU |
| Thickness(mm) | 50, 60, 75, 100 |
| Max. Length(mm) | 10000 |
| Width(mm) | 980 / 1180 |
| Standard Color | White Grey |

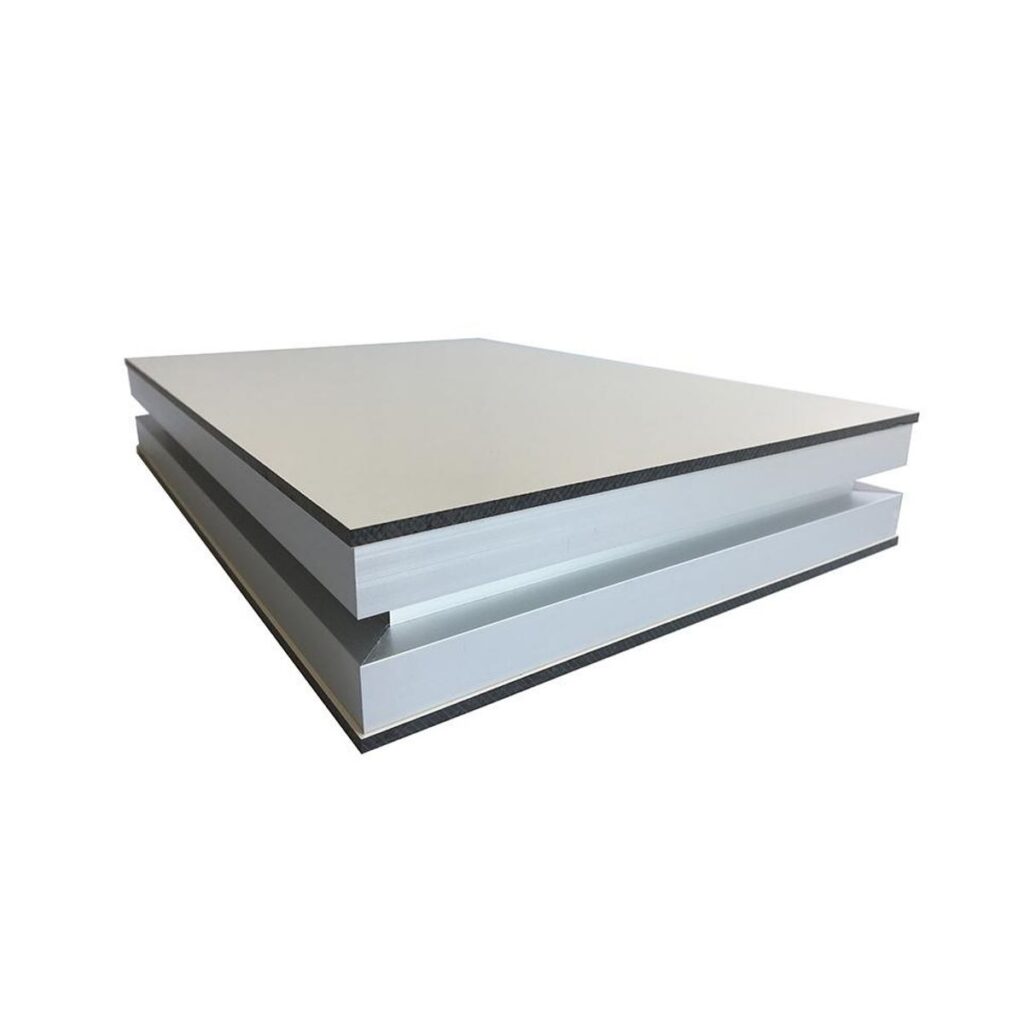

HPL Wall Panel
HPL wall panels are mainly composed of double-sided 3mm or 4mm HPL sheets and core materials. It features anti-scratch, impact-resistant, corrosion-resistant, and non-fading.
The colors and sizes are customizable and it can be frequently used in VHP and other disinfection environments, and HPL wall panels are widely used in pharmaceuticals, laboratories, operating rooms, etc.
| Surface | 3mm / 4mm HPL Sheet |
| Infill | Rockwool, PU, EPS, Aluminum Honeycomb |
| Thickness(mm) | 50 / 75 / 100 |
| Max. Length(mm) | 4000 |
| Width | Customizable |
| Color | Customizable |
Cleanroom Panels -The Complete FAQ Guide
Learn more about the cleanroom panels with this guide. We prepare some questions and answers for you.
- What Are Cleanroom Panels?
- How Many Types of Cleanroom Panels Are There by Structure?
- What Are The Most Common Surface Materials For Cleanroom Panels?
- What Are Common Insulation Materials For Cleanroom Panels?
- How to Install Cleanroom Panels？
- How to Request A Quote for Cleanroom Panels?
- What Are Key Quality Standards For Cleanroom Panels
- Why Choose KINROM Cleanroom Panels?
What Are Cleanroom Panels?
Cleanroom panels are types of modular building panels specifically engineered for high-standard clean environments. It is constructed by metal or laminated surfaces with various insulated materials—such as rockwool, aluminum honeycomb, polyurethane or magnesium oxide—to achieve a smooth, non-dust accumulating, chemically resistant, and airtight structure. These panels are designed to maintain stable pressure differentials and meet stringent cleanliness classifications.
They are widely used in critical sectors including pharmaceuticals, hospital, medical devices, electronics & semiconductors, and food manufacturing factory and laboratories, where they serve as essential components in the construction of cleanrooms and laboratories to ensure regulatory compliance and production safety.

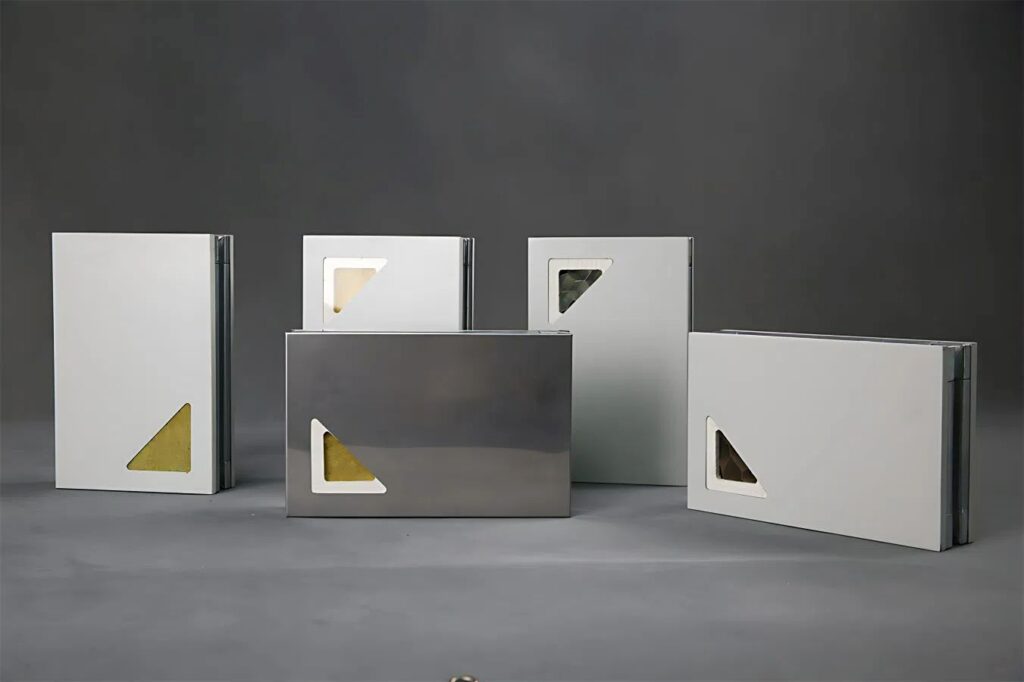

Picture 1 All Kinds of Cleanroom Panels
How Many Types of Cleanroom Panels Are There by Structure?
Cleanroom panels can be divided into two main types based on their structure: Handmade Cleanroom Panels and Machine Made Cleanroom Panels. Below, KINROM outlines the key differences between them.
1. Handmade Cleanroom Panels
Production Process:
KINROM’s handmade panels are manufactured using a fully automated production line. The process is as follows:
Steel sheet decoiling → Steel sheet bending → Assembly of galvanized steel frame and corner → Automatic glue spraying → Insulation filling (e.g., rock wool, magnesium oxide, aluminum honeycomb) → Hot/cold pressing → Stacking → Packaging.
The production cycle is relatively complex and time-consuming.
Video 1 Handmade Cleanroom Panel Manufacturing Process
Structural Features:
Reinforced with metal frames on all sides, these panels offer significantly higher compressive strength (4-5 times greater than machine made cleanroom panels) and provide superior protection to the insulation against moisture and impact, thereby extending service life. They support multi-material insulation compositions (e.g., rock wool + magnesium oxide) and achieve Class A fire resistance along with improved acoustic insulation (≥35 dB).
Picture 2 Handmade Cleanroom Panels Structure
Performance Metrics:
Excellent airtightness, suitable for Class 100 and higher cleanroom environments; surface flatness tolerance within 0.3 mm; sealed joints ensure long-term reliability and environmental stability.
Applications:
Ideal for high-standard settings such as hospital operating rooms, biosafety laboratories, and Class 100 electronic cleanrooms; also suitable for load-bearing ceilings/walls and custom projects requiring special shapes or extra-long panels.
Installation Characteristics:
Available in standard widths (1180/980 mm) and customizable non-standard sizes, significantly reducing on-site cutting and simplifying installation.
Cost and Customization:
Due to premium materials, complex processes, and high customizability (size, insulation, and surface options), these panels are generally 20-50% more expensive than machine made panels.
2. Machine Made Cleanroom Panels
Production Process:
Steel sheet uncoiling → Steel sheet bending → Glue spraying → Hot pressing → Fixed-length cutting → Stacking → Packaging.
This process is simpler and allows higher production efficiency with strong standardization.
Video 2 Machine Made Cleanroom Panel Manufacturing Process
Structural Features:
Equipped with metal edges on both longer sides, these panels have relatively lower compressive and impact resistance. They typically use a single core material (e.g., rock wool or silica rock) and are generally limited to a maximum length of 6 meters.
Picture 3 Machine Made Cleanroom Panels Structure
Performance Metrics:
Joints may be prone to leakage over time due to stress or aging; flatness tolerance within 0.5 mm; sound insulation approx. ≥30 db.
Applications:
Suited for general clean environments such as food and pharmaceutical packaging areas, standard laboratories, storage rooms, and lightweight or temporary projects requiring quick assembly.
Installation Characteristics:
Standard panel widths (e.g., 950/1150 mm) allow flexible on-site cutting, but post-installation sealing must be performed with care.
Cost and Customization:
Produced at lower cost with high standardization; customization is limited, and widths are not customizable.
Make the Right Choice with KINROM
Whether you need high-performance handmade panels or cost-effective machine made panels, KINROM offers end-to-end solutions. Our technical team provides complimentary consultation, custom design, and sample support to help you select the most suitable cleanroom panels tailored to your project requirements and budget.
What Are The Most Common Surface Materials For Cleanroom Panels?
The selection of surface material for cleanroom panels directly impacts their corrosion resistance, cleanability, service life, and compliance with cleanliness standards. Below are the most common types of surface materials for cleanroom panels. KINROM will provide a detailed introduction to their features and applications:
Pre-painted Galvanized Iron (PPGI)
PPGI is made from galvanized steel substrate coated with multiple layers of organic coatings (such as polyester PE or fluorocarbon PVDF) through a rolling process, resulting in a colorful and smooth surface. It offers rust resistance, general corrosion protection, and retains the strength of steel while providing an attractive appearance. The substrate thickness typically ranges from 0.4mm to 0.6mm, with a coating thickness of approximately 0.18–0.22μm. Due to its cost-effectiveness, good processability, and variety of color options, PPGI is widely used in general clean environments such as electronics and manufacturing.
Powder Coated Galvanized Iron (PCGI)
PCGI also uses a galvanized steel substrate but employs an electrostatic powder coating process, which delivers a thicker, more robust coating with enhanced adhesion. It offers significantly better corrosion resistance, scratch resistance, and weather ability compared to PPGI. The substrate generally ranges from 0.5mm to 0.8mm in thickness, and custom colors are available with low minimum order quantities. PCGI is ideal for high-temperature, high-humidity, or corrosive environments, including food processing plants and pharmaceutical workshops.
304 Stainless Steel
Stainless steel offers excellent mechanical strength and high resistance to chemical corrosion, high temperatures, and frequent sterilization. Common surface finishes include polished, brushed, and sandblasted. It is widely used in pharmaceutical cleanrooms, biosafety labs, operating theaters, and food processing areas where high hygiene and environmental resistance are critical.
Polyvinyl Chloride (PVC)
PVC is a polymer plastic surface material often combined with other substrates. It is fully waterproof, resistant to acids, alkalis, and common disinfectants, seamless, non-porous, and inhibits bacterial growth. This makes it particularly suitable for wet and frequently cleaned environments such as biochemical labs, hospital walls, and food and beverage processing areas.
High-Pressure Laminate (HPL)
HPL is composed of multiple layers of resin-coated specialty paper cured under high temperature and pressure. It is wear-resistant, impact-resistant, chemical-resistant, and available in a variety of decorative patterns (e.g., wood grain, solid colors, stone patterns). Standard thicknesses are 3mm and 4mm. HPL is widely used in hospital public areas, laboratory countertops, and pharmaceutical plants where aesthetics and stringent disinfection requirements are essential.
At KINROM, we supply cleanroom panels with all the above surface materials. We provide expert recommendations based on your specific operational environment, budget, and industry standards (such as GMP and ISO 14644). We also offer free samples and professional technical consultation to help you make the best choice.
What Are Common Insulation Materials For Cleanroom Panels?
The insulation material is central to the thermal performance, sound absorption, fire resistance, and structural integrity of cleanroom panels. Different insulating materials offer unique physical and chemical properties to meet the demands of various controlled environments. Below are the most commonly used insulation materials in cleanroom panels and their key features:
Rockwool
Fire Resistance: Class A non-combustible inorganic material that effectively limits flame spread.
Thermal Insulation: Low thermal conductivity helps improve energy efficiency, ideal for cold storage and temperature-sensitive cleanrooms.
Noise Reduction: Fibrous structure offers excellent sound absorption, suitable for hospitals, labs, and acoustic-sensitive settings.
Mechanical Strength: High impact resistance and structural stability.
Typical Specifications: Thickness: 48mm (for 50mm panel), density: 100–120 kg/m³. KINROM uses hydrophobic rock wool to resist moisture and extend service life. Custom sizes available.
Magnesium Oxide (MgO)
Fire Resistance: Class A non-combustible; emits no toxic smoke at high temperatures.
Moisture and Corrosion Resistance: Suitable for humid or chemically aggressive environments such as basements and industrial plants.
Strength: High load-bearing capacity, often used in walkable ceiling systems in combination with other materials.
Typical Thickness: 5mm.
EPS Concrete
Fire Resistance: Class A non-combustible; does not melt, drip, or deform under fire.
Thermal Performance: Very low thermal conductivity, outperforming rock wool and MgO in insulation.
Lightweight and Durable: Easy to handle and install; ideal for partitions and ceilings.
Moisture Resistance: Performs reliably under damp conditions.
Aluminum Honeycomb
Structure: Combines very low weight with high strength and flatness; offers excellent stability.
Fire Rating: Class B1 flame-retardant.
Acoustic and Thermal Insulation: Effective at blocking noise and heat transfer.
Common Cell Sizes: 10mm, 15mm, 20mm.
Polyurethane (PU)
Thermal Insulation: Excellent insulation performance, ideal for cold storage and low-temperature applications.
Lightweight: Easy to transport and install.
Fire Performance: Class B1;
Foam Insulants (EPS / XPS)
Advantages: Lightweight, low cost, good thermal insulation.
Disadvantages: Usually Class B1/B2 fire rating;
How to Choose the Right Insulation Material?
Fire Safety First: Class A materials such as rock wool, MgO, or EPS concrete.
Thermal Efficiency Priority: PU, rock wool, and EPS concrete perform best.
High Humidity Areas: Consider EPS concrete, MgO, or aluminum honeycomb.
Lightweight Applications: Options include aluminum honeycomb, PU, EPS, or XPS.
For further assistance in selecting materials based on your specific environment or performance requirements, please contact the KINROM technical team. We offer professional guidance and free sample support.
How to Install Cleanroom Panels？
How to Request A Quote for Cleanroom Panels?
If you are purchasing cleanroom panels for your project, please provide the following information to get an accurate quotation from KINROM:
Application
Pharmaceutical factory, electronics factory, operating room, laboratory or others.
Required Quantity
Please share either Bill of Quantities (BOQ) or layout plan, so we can calculate the panel quantity needed.
Insulating Material
Rockwool, magnesium oxide, aluminum honeycomb, polyurethane (PU), etc.
Surface Material
PPGI (pre-painted galvanized iron), PCGI (powder coated galvanized iron), stainless steel, PVC, HPL (high pressure laminate), etc.
Thickness
50mm, 75mm, 100mm, or other custom requirements.
Providing detailed information above will help us recommend the most suitable product solution and offer you a precise quotation. If you are still in the early planning phase, we are pleased to provide product selection advice and reference cases.
Please feel free to contact the KINROM team—we will promptly prepare a detailed quote and technical documentation for you.
What Are Key Quality Standards For Cleanroom Panels
The quality of cleanroom panels is evaluated based on dimensional accuracy, appearance, and performance. Key standards include:
Dimensional Tolerances
Length/Width: Allowable deviation: ±1mm (e.g., a 2400mm panel may measure between 2399–2401mm).
Thickness: Allowable deviation: ±0.5mm.
Flatness: Wave height deviation ≤0.3mm, wave spacing ≥500mm.
Appearance Quality
Surface Condition: Clean, free of adhesive residues, material marks, oil stains, or cutting burrs.
Panel Surface:
Uniform color and smooth surface without visible defects such as dents, warping, or deformation.
No noticeable scratches, dings, or damage.
Consistent color matching across panels within the same order.
Steel sheet: Free of cracks or material defects. No visible cracks or peeling in coatings or plating.
Protective Film:
Firmly bonded, flat, with minimal wrinkles or bubbles, and no edge lifting.
Performance Requirements
Fire Resistance: Must meet Class A non-combustibility or customer-specified standards.
Bonding Strength:
Rock wool/aluminum honeycomb/magnesium oxide panels: ≥0.12MPa
Non-standard panels: ≥0.08MPa
Adhesive coverage rate between insulating material and metal surface should be≥85%.
Load-Bearing Capacity:
Ceiling panels: Withstands uniformly distributed load ≥1.2 kN/m² (122.45 kg/m²) at L₀/250 deflection.
Wall panels: Withstands uniformly distributed load ≥0.7 kN/m² (71.42 kg/m²) at L₀/250 deflection.
Why Choose KINROM Cleanroom Panels?
KINROM is committed to delivering high-performance, reliable cleanroom enclosure solutions. Here is what sets our products apart:
Superior Materials and Craftsmanship
We use premium galvanized steel with zinc coating ≥60g/m² and high-performance core materials (e.g., hydrophobic rock wool with ≥98% water resistance and density ≥100kg/m³).
Advanced automated production ensures precise dimensions (length/width tolerance: ±0.5mm; thickness tolerance: ±0.2mm), structural integrity, and flawless surfaces.
Comprehensive Performance Inspection
Our core products exceed international and domestic standards for fire resistance, bonding strength, and load-bearing capacity.
Tailored Solutions and Technical Expertise
We provide customized recommendations and products (e.g., dimensions, colors, performance combinations) for industries such as biopharma, electronics, and medical devices.
Our technical team supports clients from design to implementation, optimizing solutions and controlling costs.
Quality Assurance and Reliable Support
A traceable quality management system and clear product warranty ensure full accountability.
Responsive after-sales service offers installation guidance and maintenance support.
Choosing KINROM means partnering with a trusted provider for high-integrity cleanroom solutions. Contact us today to learn more about our products and recent project cases.
