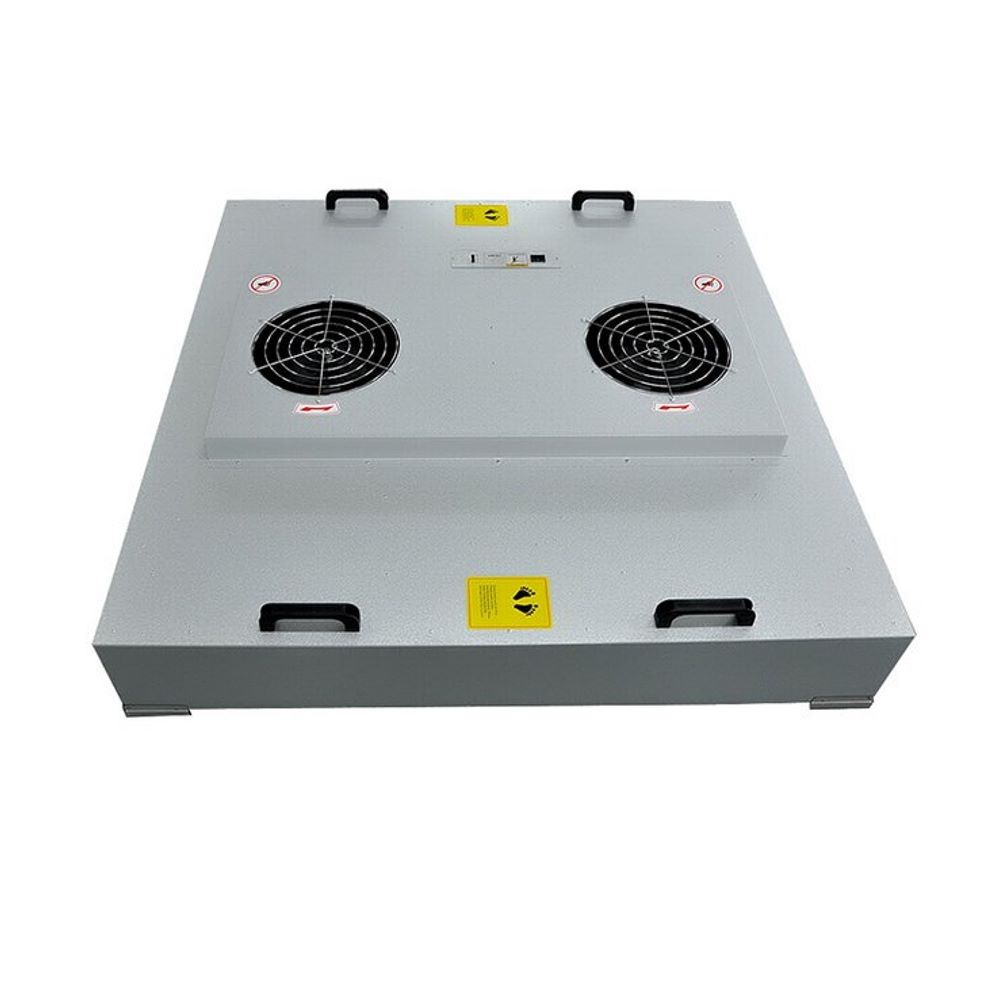

Ultrathin Fan Filter Unit
Ultrathin Fan Filter Unit
Ultrathin fan filter unit features ultrathin thickness and light weight, which can be easily installed in the limited spaces. It adopts integrated design, and it is allowed to be installed vertically or horizontally.
Advantages:
Ultrathin Structure Design
The minimum thickness can reach 110mm, which make it easy and convenient to install and maintenance.
Special Designed Control System
The control system independently developed by KINROM can realize the centralized control of ultra-large scale FFUs while also enabling precise data reading and control of single FFU.
Low Noise & Small Vibration
High efficiency and low energy consumption DC motors are adopted, which make the low noise and small vibration, and dynamic balance of the fan can reach G2.5.
Low Energy Consumption
Compared with AC motors, brushless DC motors can make the energy consumption 30%-40% lower.
Product Diagram
Product Specifications
| External Size (mm) | 575 * 575 | 1175 * 1175 | 1000 * 1500 |
| Box Height (mm) | 110 + 35 | 160 + 35 | 160 + 35 |
| Box Material | Stainless Steel Sheet / Al-Zn Alloy Sheet | ||
| Total Static Pressure (Pa) @0.45m/s | 360 | 275 | 260 |
| Air Speed (m/s) | 0.3 - 0.5 | 0.3 - 0.5 | 0.3 - 0.5 |
| Energy Consumption (W) | 60 - 95 | 100 - 175 | 110 - 190 |
| Electric Current (A) | 0.29 - 0.44 | 0.47 - 0.80 | 0.52 - 0.87 |
| Filter Thickness (mm) | 50 | 50 | 50 |
| Filtration Efficiency | H13 / H14 / U15 / U16 / U17 | ||
| Noise (dBA) | 44 - 48 | 45 - 51 | 46 - 53 |
