HEPA Filter Box
HEPA Filter Box | HEPA Filter Housing

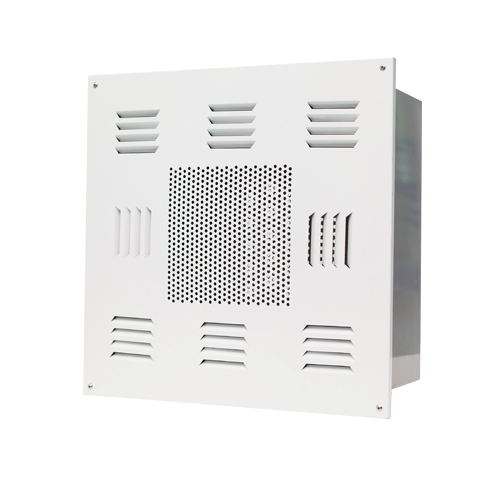

HEPA filter box, also called HEPA filter housing, is the terminal device of cleanroom HVAC system, which is used for supplying static pressure air before being purified by HEPA filters. It is mainly consist of diffuser plate, static pressure box, flow control valve, and is optional with PAO test port.
There are two types of HEPA filter boxes, mechanical seal and gel seal, and the gel seal type is specially used for gel seal HEPA filters, which is with excellent air tightness.
The material of box body and diffuser plate is optional with stainless steel and painted cold-roll steel, which is smooth welding treatment, flat surface and strong structure, and various types of diffuser plates can be manufactured to meet requirements of customers.
As an experienced HEPA filter box manufacturer in China, we can customize based on special requirements. Please contact us to tailor your HEPA filter box solutions.
Product Specifications
| Model | Air Volume (CMH) | Box Size (mm) | Filter Size (mm) | Air Inlet Size (mm) |
|---|---|---|---|---|
| Top Installed Air Inlet, Gel Seal HEPA Filter | ||||
| HBT-300 | 300 | 365*365*250 | 305*305*93 | 160*160 |
| HBT-500 | 500 | 480*480*250 | 420*420*93 | 200*200 |
| HBT-1000 | 1000 | 695*585*250 | 635*525*93 | 200*320 |
| HBT-1500 | 1500 | 825*695*250 | 765*635*93 | 200*400 |
| HBT-2000 | 2000 | 1095*695*250 | 1035*635*93 | 250*500 |
| HBT-2500 | 2500 | 1275*695*250 | 1215*635*93 | 320*500 |
| HBT-3000 | 3000 | 1275*895*250 | 1215*835*93 | 320*630 |
| Side Installed Air Inlet, Gel Seal HEPA Filter | ||||
| HBS-300 | 300 | 365*365*400 | 305*305*93 | 160*160 |
| HBS-500 | 500 | 480*480*400 | 420*420*93 | 200*200 |
| HBS-1000 | 1000 | 695*585*400 | 635*525*93 | 200*320 |
| HBS-1500 | 1500 | 825*695*400 | 765*635*93 | 200*400 |
| HBS-2000 | 2000 | 1095*695*450 | 1035*635*93 | 250*500 |
| HBS-2500 | 2500 | 1275*695*520 | 1215*635*93 | 320*500 |
| HBS-3000 | 3000 | 1275*895*520 | 1215*835*93 | 320*630 |
| Customized design for size, material, and other specifications is available, click the button below for asking a tailored solution. | ||||
Structure

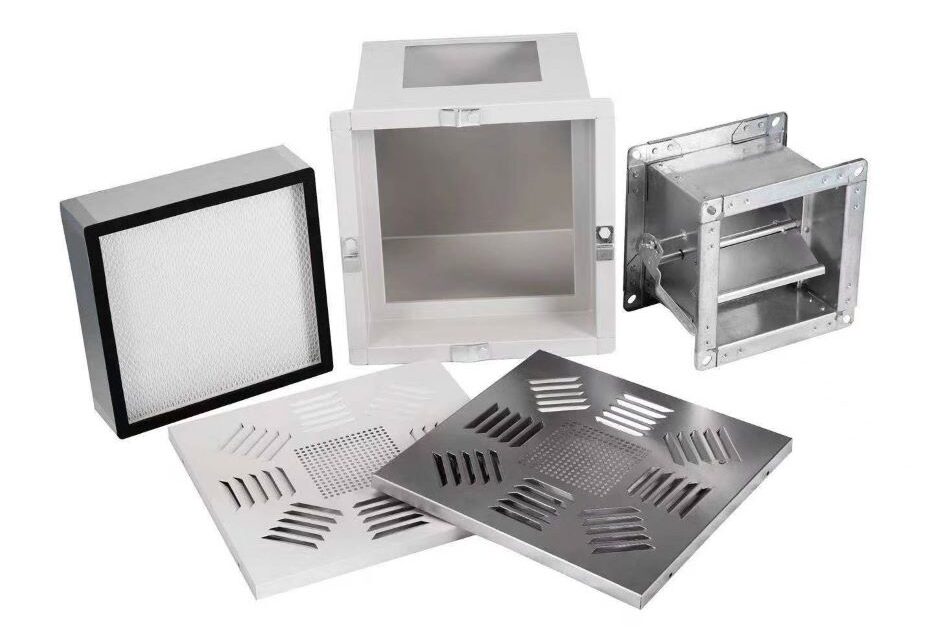

1. Air Volume Control Valve 2. Static Pressure Box 3. HEPA Filter 4. Diffuser Plate
Features
- High quality painted cold-roll steel, optional with 304 stainless steel.
- Smooth and fully welded treatment to ensure the strength and extend the life span.
- Swirl, perforated or other shape diffusers are optional for air distribution.
- HEPA filters can be easily replaced without removing ducts.
- Air volume can be conveniently adjusted by air valve without climbing on the false ceilings.
Solutions
Material:
- High Quality Cold-roll Steel
- High Quality Stainless Steel
Seal Type:
- Machanical Seal
- Gel Seal
Air Inlet Position:
- Top Entry
- Side Entry
Air Inlet Shape:
- Square / Rectangle
- Rounded
