Modular Cleanroom
Your Trustable Modular Cleanroom Manufacturer in China
As a leading modular cleanroom manufacturer in China, we specialize in delivering high-quality, innovative solutions to meet the unique needs of various industries.
We pride ourselves on providing fully customizable modular cleanroom solutions. Whether customized cleanliness level, unique size, or specialized industries design is required, we can always create solutions that fit your projects perfectly.
With our extensive experience and advanced manufacturing capabilities, we provide customized modular cleanrooms that meet the strictest international standards, including ISO, GMP, etc.
Type of Modular Cleanroom We Manufacturing
There are many disadvantages of traditional cleanroom systems, such as long time construction, high initial cost, lack of flexibility, not portable, etc. For solving those issues, our technical team designed modular cleanrooms with two options, hardwall cleanroom and softwall cleanroom, for meeting requirements of various applications.

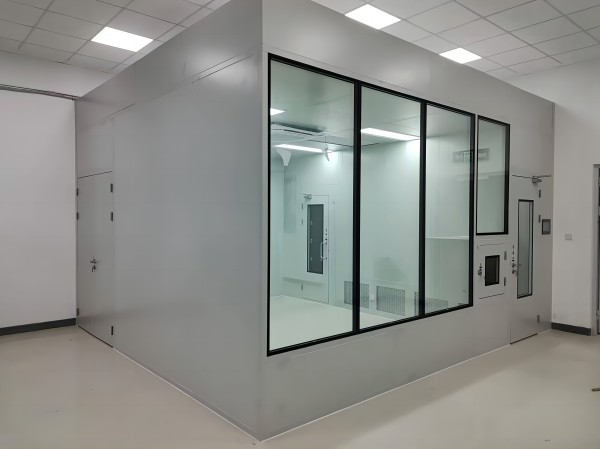

Hardwall cleanrooms feature rigid, solid walls that provide superior environmental control, ensuring airtight sealing and enhanced durability. It is an ideal choice for facilities that require long-term cleanroom solutions with higher cleanliness and structural integration.
Our hardwall cleanrooms offer a clean, controlled environment while being fully customizable to suit specific size, layout, and operational requirements.

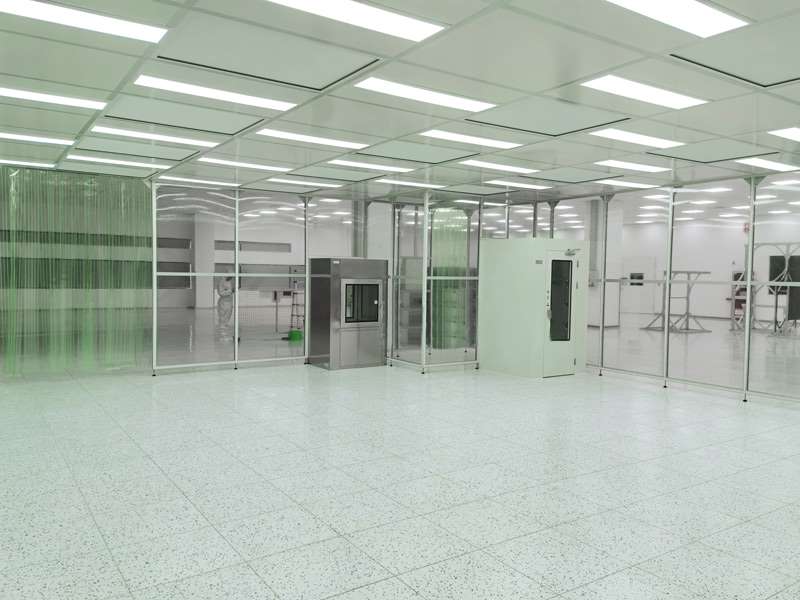

Softwall cleanroom, also known as a clean booth, is a more flexible, portable solution that provides a clean environment wherever it is needed. It can be assembled and dismantled quickly, be relocated easily, making it perfect for operations that require temporary or mobile cleanroom setups.
Softwall cleanroom is a cost-effective option that can configure with PVC curtain or acrylic plates and equip with FFU(Fan Filter Unit) for effective contamination control.
Why Choose Our Modular Cleanroom?
Flexible and Customizable
It adopts standard modular design. The size for each module is standardized, and can be combined flexibly based on requirments. Meanwhile, it can be customized to fit any size, layout, operational need or standards.
Quick and Easy Installation
The application of modular design can highly improve the cleanroom construction efficiency and save installation time. Compared to traditional cleanrooms, modular cleanrooms can be installed much faster and easily.
High Cost-Performance
Modular cleanrooms are cost-effective solutions since they are prefabricated and can be installed without extensive on-site construction, significantly reducing the overall cost and time involved.
High Expandability
Compared to traditional cleanrooms, modular cleanrooms are easily expandable, and significant additional construction is not required for any further expansion. It can be expanded or modified easily which can save time and cost in the future.
Low Noise and Contamination
During the construction of modular cleanrooms, panels or aluminum profile cutting is barely required on site, which can greatly reduce the noise and contamination while doing installation.
Recyclable Utilization
Except for sealants and some consumables, almost all cleanroom components are recyclable and reusable. This allows the innovation, modification, expansion and relocation of production line conveniently.
Modular Cleanrooms -The Complete FAQ Guide
Learn more about the modular cleanrooms with this guide. We prepare some questions and answers for you.
- What Is A Modular Cleanroom?
- What Are the Key Features of A Modular Cleanroom?
- What Are the Advantages of Modular Cleanrooms Compared to Traditional Cleanrooms?
- What Are the Types of Modular Cleanrooms?
- What Are the Application Areas of Modular Cleanrooms?
- Can Modular Cleanrooms Achieve Constant Temperature and Humidity?
- How to Get A Quote for A Modular Cleanroom from KINROM?
What Is A Modular Cleanroom?
A modular cleanroom is a controlled environment constructed from prefabricated, standardized components designed to be assembled quickly and efficiently. Unlike traditional stick-built cleanrooms, this modular approach offers superior flexibility, allowing for easier expansion, reconfiguration, or relocation as project needs.
The core function of a modular cleanroom is to maintain a stringent level of cleanliness through a high-efficiency air filtration system, typically utilizing Fan Filter Units (FFUs) with HEPA or ULPA filters. This system continuously circulates and scrubs the air to remove airborne particles and meet specific ISO classification standards (e.g., ISO Class 1 through 9).
Beyond particulate control, its integrated design precisely regulates critical environmental parameters including temperature, humidity, airflow patterns (laminar or turbulent), room pressurization (positive or negative), lighting, and acoustics. This comprehensive control ensures a stable and compliant workspace that meets the rigorous requirements of industries such as pharmaceuticals, biotechnology, microelectronics, medical device manufacturing, and aerospace.
Picture 1 Modular Cleanrooms
What Are the Key Features of A Modular Cleanroom?
A modular cleanroom is engineered environment designed for superior contamination control and operational flexibility. Its main features include:
High Cleanliness Standards
Capable of achieving and maintaining various ISO classifications, such as ISO 4 (Class 10) to ISO 8 (Class 100,000), making it suitable for industries with stringent hygiene requirements including semiconductor manufacturing, pharmaceuticals, aerospace, biotechnology, and high-end food processing.
Excellent Flexibility and Scalability
Built with prefabricated modules, it can be easily reconfigured, expanded, or relocated in response to changing production needs, process upgrades, or spatial adjustments, significantly reducing future modification costs and complexity.
High Customizability
Offers tailored solutions for specific processes, equipment, and workflow needs. Customization options include airflow patterns (unidirectional or non-unidirectional), precise temperature and humidity control, pressure differentials, lighting, electrostatic discharge (ESD) protection, and noise reduction.
Integrated Systems Approach
Functions as a fully integrated environment rather than just an enclosed space. Key systems often include advanced air filtration (e.g., FFUs with HEPA/ULPA filters), optimized airflow design, HVAC systems, real-time monitoring, and ESD control, all working together to ensure a stable and compliant production environment.
Cost-Effectiveness & Long-Term Value
While the initial investment and operational costs may be higher than those of conventional structures due to advanced systems and bespoke engineering, modular cleanrooms deliver consistent and reliable conditions that reduce contamination risks and improve product yield. This makes them a valuable long-term asset for quality-driven manufacturing and R&D applications.
What Are the Advantages of Modular Cleanrooms Compared to Traditional Cleanrooms?
Modular cleanrooms offer significant advantages over traditional cleanrooms by better meeting the high demands of modern industrial and research environments for controlled environments, while also providing breakthroughs in construction efficiency, flexibility, and sustainability. The key benefits can be summarized as follows:
Shorter Construction Timeline and Faster Deployment
Modular cleanrooms utilize prefabricated standardized components that are manufactured and tested off-site. On-site assembly is quick and efficient, greatly reducing installation time and minimizing disruption to ongoing operations. This approach also decreases construction-related noise and dust pollution.
Enhanced Flexibility and Scalability
The modular structure allows the cleanroom size and layout to be easily adapted to specific requirements. It can be reconfigured or expanded in response to operational changes, such as production line updates, process improvements, or new product development, significantly improving space utilization and adaptability.
Cost-Effectiveness
Modular cleanrooms offer economic benefits in both initial construction and long-term operation. Prefabricated components reduce labor and on-site construction costs, shortening the return on investment period. The reusable nature of the modules allows for disassembly and reassembly during relocation, avoiding rebuilding costs. Additionally, maintenance is more convenient, and localized part replacement reduces overall repair expenses and downtime.
Reliable and Stable Cleanliness Performance
Equipped with advanced air purification technologies—such as HEPA/ULPA filtration and Fan Filter Units (FFUs)—along with airtight sealing, modular cleanrooms effectively control airborne particles and microorganisms. They maintain various cleanliness standards (e.g., ISO Class 4 to ISO Class 8) and provide stable temperature, humidity, pressure differentials, and airflow organization, meeting the stringent requirements of high-precision manufacturing and sensitive experiments.
Easier Maintenance and Future Upgrades
The modular design features a clear structure and independent units, simplifying troubleshooting and part replacement. As technology evolves or higher cleanliness standards are required, the system can be efficiently upgraded without large-scale reconstruction, extending the facility’s service life.
Environmental Sustainability and Energy Efficiency
Modular cleanrooms often incorporate eco-friendly and recyclable materials in their construction. Energy consumption is optimized through high-efficiency fan systems, energy-saving HVAC units, and improved airflow design, supporting carbon reduction goals and helping companies achieve green manufacturing targets.
In summary, modular cleanrooms outperform traditional cleanrooms in construction efficiency, operational flexibility, lifecycle cost control, environmental performance, and sustainability. They are particularly suited for industries requiring rapid deployment, frequent layout changes, or high cleanliness standards, such as semiconductor manufacturing, pharmaceuticals, biotechnology, medical devices, and precision manufacturing.
What Are the Types of Modular Cleanrooms?
Modular cleanrooms are primarily categorized into two types based on their enclosure construction: Hard-Wall Cleanrooms and Soft-Wall Cleanrooms (commonly known as Clean Booths). Below is a detailed comparison of these two types, including their features and typical applications:
Hard-Wall Cleanrooms
Hard-wall cleanrooms are built with solid, durable panels mounted onto a rigid metal framework. They form a sealed and permanent structure suitable for high-level environmental control.
Key Features:
Structural Integrity: Solid walls provide high stability, support mounted equipment, and allow custom interior configurations.
Superior Sealing: Excellent airtightness ensures precise control over pressure differentials (positive/ negative), preventing external contamination.
Full Environmental Control: Capable of integrating complete HVAC systems, temperature and humidity control, and advanced filtration. Can achieve cleanliness levels from ISO Class 1 to ISO Class 8.
Expandable and Relocatable: Although designed as permanent structures, they can be expanded or relocated if needed.
Applications:
Semiconductor and electronics manufacturing
Pharmaceutical production (sterile processes, GMP compliance)
Biotechnology and biomedical research labs
Medical device manufacturing
Aerospace and optical industries
Picture 2 Hardwall Cleanrooms
Soft-Wall Cleanrooms
Soft-wall cleanrooms use a metal frame with clear PVC vinyl curtains. They are cost-effective, portable solutions designed to create localized clean zones, often relying on the existed cleanroom’s ambient temperature and humidity control.
Key Features:
Cost-Effective: Lower initial investment and quicker return on investment.
Quick Installation and Portability: Easy to assemble, disassemble, and relocate with minimal installation time.
Localized Clean Air Zone: Provides unidirectional airflow for specific processes but has limited sealing and environmental control.
Limited Regulation: Temperature and humidity are influenced by the surrounding environment.
Applications:
Small-scale production or R&D applications
Isolated workstations within a larger facility
Pilot projects or short-term clean environment needs
Packaging, inspection, or assembly stations where full environmental control is not critical
Picture 3 Softwall Cleanrooms
Comparison Summary
| Feature | Hard-Wall Cleanrooms | Soft-Wall Cleanrooms |
|---|---|---|
| Structure & Material | Solid panels, permanent structure | Metal frame + PVC curtains |
| Sealing & Isolation | Excellent sealing and isolation | Limited sealing, influenced by surroundings |
| Environmental Control | Full control (temp, humidity, pressure) | Primarily particulate control |
| Cleanliness Level | ISO 1 to ISO 8 | Typically ISO 5 to ISO 8 |
| Cost | Higher initial investment | Lower cost, Higher ROI |
| Flexibility | Expandable and reconfigurable | Highly portable and easy to modify |
| Best For | Full-scale production, regulated environments | Localized, temporary, or budget-conscious applications |
Conclusion
The choice between hard-wall and soft-wall cleanrooms depends on your requirements for environmental control, compliance, scalability, and budget. Hard-wall cleanrooms are ideal for large-scale, permanent, and highly regulated environments. Soft-wall cleanrooms offer a flexible and economical solution for localized or short-term clean zone needs.
What Are the Application Areas of Modular Cleanrooms?
Modular cleanrooms are widely used in industries that require strictly controlled production and experimental environments due to their highly stable cleanliness conditions, flexible layout configurations, and reliable performance. Key application areas include:
Semiconductor Manufacturing
The production of integrated circuits (ICs), microelectronic devices, and photonic components demands extremely low levels of airborne particles. Even micron-sized contaminants can cause defects. Modular cleanrooms provide stable temperature and humidity control, ultra-low particulate concentrations, and effective static management to ensure high product yield and manufacturing reliability.
Pharmaceutical and Biologics
The manufacture of medicines, vaccines, and biological products must comply with Good Manufacturing Practices (GMP), with strict control over microbial and particulate contamination. Modular cleanrooms maintain air cleanliness, enable differential pressure zoning, and support aseptic processing to ensure compliance and product quality.
Aerospace
The production and assembly of high-precision components such as aero-engine parts, satellite sensors, and avionics require extremely clean conditions to avoid contamination that could affect performance and reliability. Modular cleanrooms provide dust-free, low-humidity, and oxidation-controlled environments.
Biotechnology and Medical Research
Experiments involving cell culture, gene editing, pathogen research, and stem cell applications are highly sensitive to airborne particles and microorganisms. Modular cleanrooms offer not only particulate control but also integrated monitoring and regulation of temperature, humidity, and CO₂ levels, ensuring a stable and contaminant-free environment.
Medical Device Manufacturing
The production of high-end medical imaging equipment, implantable devices, and in vitro diagnostic reagents requires clean environments to prevent product contamination. Modular cleanrooms can be tailored to meet various cleanliness standards and provide segregated areas for different manufacturing stages.
In addition, modular cleanrooms are increasingly used in other high-tech fields such as precision optics, nanomaterials, and high-purity food processing (e.g., advanced filling lines), demonstrating strong adaptability and scalability across industries.
Can Modular Cleanrooms Achieve Constant Temperature and Humidity?
Yes, modular cleanrooms are capable of maintaining constant temperature and humidity conditions. They are designed to provide high-standard working environments that are not only clean but also stable in terms of temperature and humidity, meeting the stringent requirements of industries such as precision manufacturing, biotechnology, and electronics. Here are the key aspects of how modular cleanrooms achieve constant temperature and humidity:
Dedicated HVAC Systems
Modular cleanrooms are typically equipped with specialized constant temperature and humidity air conditioning systems. These systems allow precise control over indoor temperature and humidity, ensuring stable environmental conditions. Depending on the size of the cleanroom and external climate factors, configurations such as ceiling-mounted air conditioning units combined with ducted systems can be adopted to achieve efficient and uniform control.
Thermal Insulation and Condensation Prevention
To sustain constant temperature and humidity, modular cleanrooms require effective thermal insulation measures. Especially when there is a significant temperature difference between the inside and outside, insulation treatment for the top area and FFUs (Fan Filter Units) is essential to prevent condensation, ensuring equipment operates reliably and environmental parameters remain stable.
High-Precision Control System
The constant temperature and humidity air conditioning system is usually equipped with a high-precision microcomputer-based temperature and humidity controller. Combined with highly stable temperature sensors and uniform air circulation systems, it achieves accurate and stable adjustment of environmental parameters. The system features independent heating, cooling, humidification, and dehumidification functions, allowing flexible settings and adjustments based on actual process requirements.
System Commissioning and Continuous Monitoring
After the cleanroom is constructed, comprehensive system debugging and acceptance tests are conducted, including checks on air cleanliness, temperature, humidity, and pressure difference. Through real-time environmental monitoring and feedback mechanisms, temperature and humidity can be consistently maintained within the set range, ensuring the reliability and consistency of production or R&D activities.
In summary, by integrating professional temperature and humidity control systems, implementing thermal insulation and anti-condensation measures, achieving high-precision environmental regulation, and establishing sound monitoring and maintenance mechanisms, modular cleanrooms can reliably provide a constant temperature and humidity clean environment. This capability plays a critical role in enhancing product quality and ensuring process stability.
How to Get A Quote for A Modular Cleanroom?
Obtaining an accurate quote for a modular cleanroom requires a clear understanding of your specific project requirements. At KINROM, we provide tailored quotations to ensure your solution fits your technical needs and budget precisely. To get started, please prepare the following information:
Intended Application: What industry is this for (e.g., semiconductor, pharmaceutical, medical device, biotechnology)? What processes will occur inside the cleanroom?
Cleanliness Level: What ISO Classification (e.g., ISO 7, ISO 5) or GMP grade (e.g., Grade A, B, C, D) is required?
Dimensions & Layout: The desired length, width, and ceiling height. A rough layout or floor plan is extremely helpful, indicating the location of doors, windows, and equipment.
Environmental Control: Your requirements for temperature, relative humidity, and pressure differentials (positive or negative pressure between rooms).
Architectural Type: Preference for a hard-wall (solid panels) or soft-wall (PVC curtain) structure.
Additional Requirements: Need for specific features such as air showers, pass boxes, emergency exits, anti-static (ESD) flooring, lighting, etc,.
The KINROM Quotation Process:
Our process is designed to be simple, transparent, and collaborative:
Initial Inquiry: Contact us via our website form, email, or phone. Provide us with the basic information listed above.
Technical Discussion: Our engineering team will contact you for a detailed discussion to clarify your needs and offer preliminary technical advice.
Project Specification Development: Based on our conversation, we will draft a detailed project specification document for your review and approval. This ensures we are both aligned on every detail before pricing.
Formal Quotation: You will receive a comprehensive and itemized quotation, including:
Design and engineering costs
Equipment and material costs (structure, HVAC, filtration systems, etc.)
Installation and commissioning fees
Optional validation and certification services
Timeline for project completion
Review & Clarification: We are available to review the quote with you, answer any questions, and make adjustments as needed.
Why Choose KINROM for Your Quote?
No-Obligation Consultation: Our initial assessment and quote are provided free of charge and with no obligation.
Tailored Solutions: We don’t offer one-size-fits-all packages. Your quote will be customized to your unique application.
Transparent Pricing: Our detailed quotes break down costs clearly, so you understand exactly what you are paying for.
Expert Guidance: Our team provides expert advice to help you optimize the design for both performance and cost-effectiveness.
Ready to Get Started?
Contact us to speak with a KINROM cleanroom specialist. The more information you can provide, the faster and more accurate our quote will be.
