VHP Pass Box
VHP Pass Box

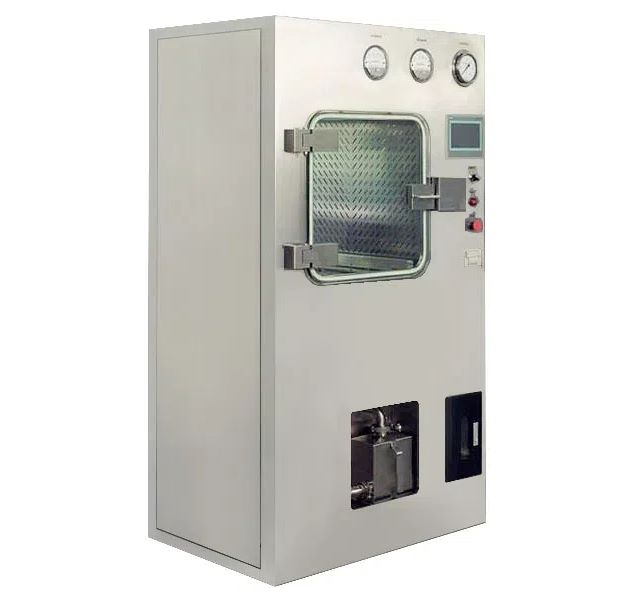

The VHP pass box is a kind of cleanroom sterilization equipment that can sterilize bacteria on the surface of materials totally while being transfered from non-clean zones to clean zones, or from clean zones with low cleanliness to that with high cleanliness without personnel movement. It is equipped with the hydrogen peroxide generator, air supply system, electromagnetic interlocking system, post-sterilization residue removal system, and sterilization medium delivery system, etc., and is widely used for industries like pharmaceutical, medical, healthcare, biological testing and others.
The working principle of VHP pass box is that the vapored hydrogen peroxide is with better sterilization than that in liquid state. After generating free H2O2﹢ and H2O2 – by the VHP generator, it is used to attack cell components, including lipids, proteins and DNA, destroy bond connections, and achieve the purpose of complete sterilization.
As an experienced VHP pass box manufacturer in China, we can customize based on special requirements, and you are encouraged to send us specifications to tailor VHP pass box solutions.
VHP Pass Box Specifications
| Model | VPB-600 | VPB-800 | VPB-1000 |
| External Size(W*D*H) mm | 1200*660*2000 | 1400*860*2200 | 1600*1060*2200 |
| Internal Size(W*D*H) mm | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Cleanliness Level | ISO 5 (Class 100) | ||
| High Efficiency Filter | H14 | ||
| Sterilization Cycling Time | 90 - 150mins | ||
| Sterilization Efficacy | lg6 | ||
| Chamber Material | 316 Stainless Steel | ||
| Interlocking System | Electromagnetic Type | ||
| VHPS Residue Level | <1ppm | ||
| Customized design for size, material, and other specifications is available, click the button below for asking a tailored solution. | |||
Features
- Doors adopt recessed and flush design for cleaning easily without collecting dust.
- The material of pass box body and chamber adopts high quality stainless steel.
- The interiors of pass box adopt coving design, which is smooth and easy to clean.
- Electromagnetic interlocking system is equipped to prevent from cross-contamination.
- Automatic leak detection is equipped to check the airtighness of chamber.
- Automatic sterilization can be realised by PLC control.
- Real-time monitoring of the temperature, humidity, pressure difference, and VHP concentration in the chamber, with data saving and printing functions.
